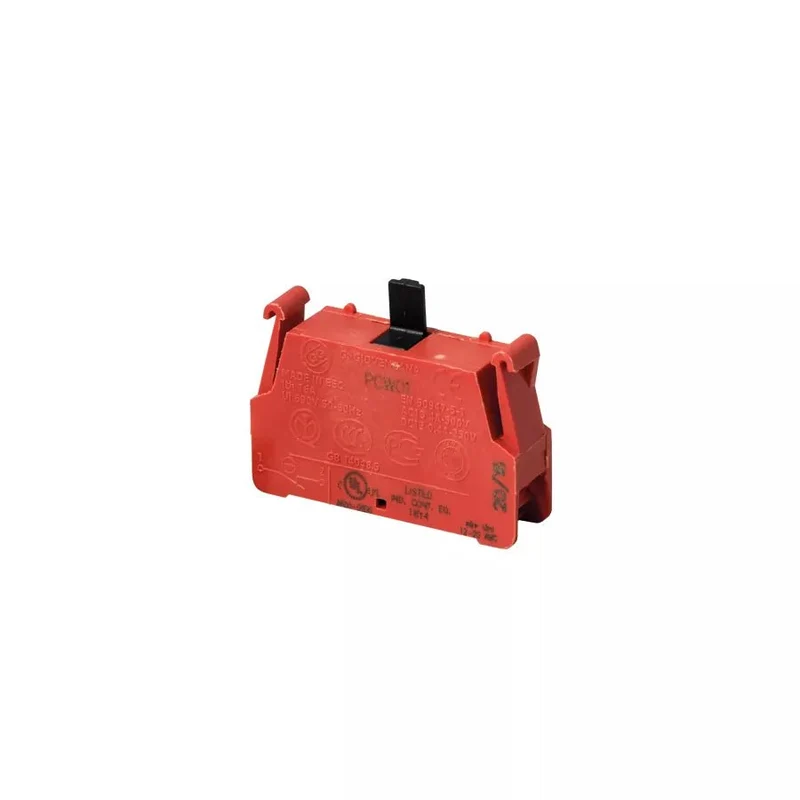

Giovenzana PCW02 Spring Contact Block 1NO 16A Progressive

The Giovenzana PCW02 is a 1NO (normally open) progressive spring contact block rated 16A. The progressive action requires the button to be depressed further before the contact closes, reducing accidental actuation and suiting applications where deliberate operation is important.

Technical specifications:

• Part number: PCW02
• Manufacturer: Giovenzana
• Series: PCW
• Type: Spring contact block, progressive action
• Contacts: 1NO (normally open)
• Rated current: 16A
• Action: Progressive (increased travel before contact closure)
• Connection: Spring-cage
• Standards: IEC 60947-5-1

Features and benefits:

• Snap-fit mounting onto standard Giovenzana push button, selector switch, and pilot light operators
• 16A rated current suits both signal and direct load switching applications
• Tool-free replacement - snap off old block and snap on new one without rewiring
• Compatible with Giovenzana PPR, PPS, PPD and other 22mm operator series

Applications:

• Adding switching contacts to push buttons, selector switches, and pilot lights
• Replacement contact block for worn or damaged operators
• Control circuit switching for motor starters, contactors, and PLC inputs

Compliant with IEC 60947-5-1.

Also known as: Giovenzana PCW02, spring contact block 1NO 16A progressive, progressive action NO contact block, Giovenzana PCW02 normally open block.
