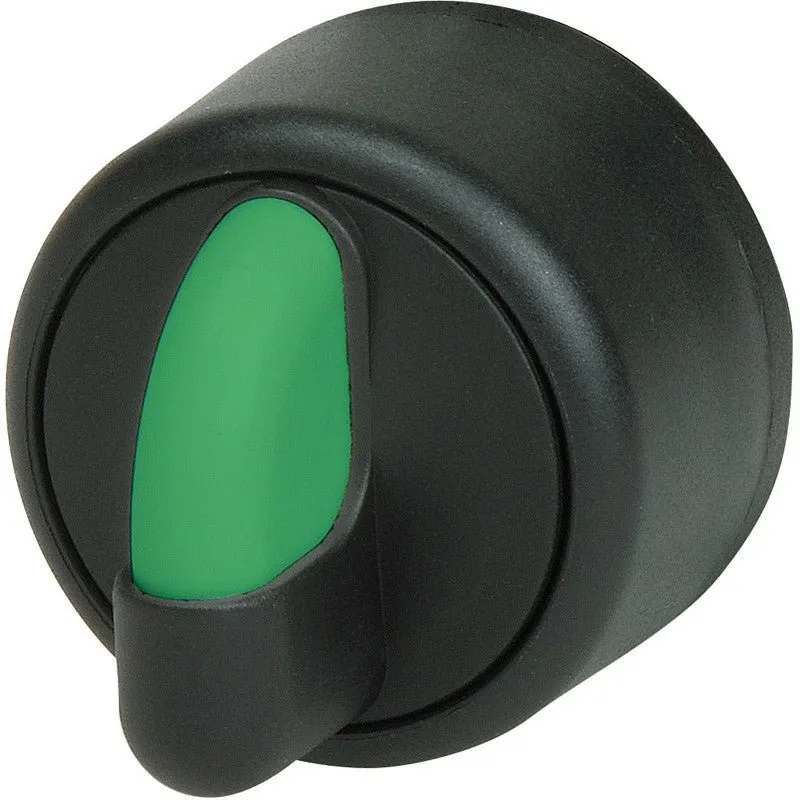

Giovenzana PSMB2D0 Knob Selector Switch Green 0-1 2-position 90deg

The Giovenzana PSMB2D0 is a green knob selector switch for 22mm panel cutout with 0-1 2-position and 90deg rotation.

Technical specifications:

• Part number: PSMB2D0
• Manufacturer: Giovenzana
• Series: PSM
• Type: Knob selector switch
• Colour: Green
• Positions: 0-1 2-position
• Rotation: 90deg
• Panel cutout: 22mm
• Standards: IEC 60947-5-1

Features and benefits:

• 22mm panel cutout compatible with standard Giovenzana and other operator interface components
• Clear detent positions give tactile confirmation of switch position
• Compatible with Giovenzana contact blocks (PL004001 NC, PL004002 NO)
• Colour-coded knobs aid operator identification

Applications:

• Mode selection on machine tool control panels
• Speed selection for motors and drives
• Manual/automatic mode changeover on industrial machinery

Compliant with IEC 60947-5-1.

Also known as: Giovenzana PSMB2D0, green knob selector switch 0-1 2-position, Giovenzana green rotary selector 22mm.
