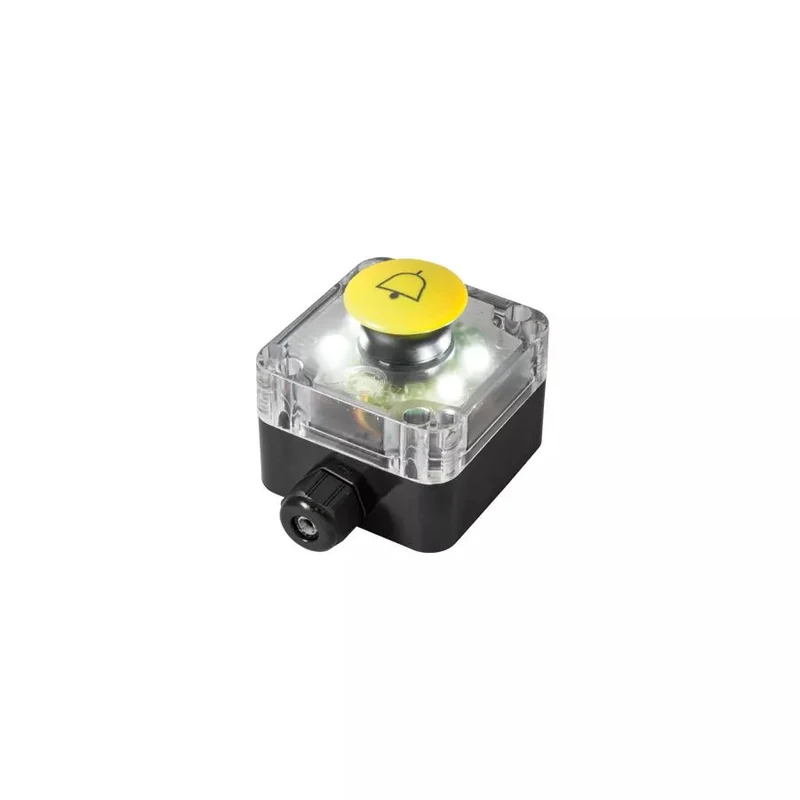

GMS169 Giovenzana PQ01 Module 12/24V White Light 5 Lux Yellow Mushroom Button

The Giovenzana GMS169 is a PQ01-format maintenance station module combining a 5 lux white LED work light with a yellow 40 mm mushroom-head momentary pushbutton. It provides illumination at the work point and a large, easy-to-operate control button within a single PQ01 pendant insert, powered from 12 or 24V AC/DC.

• Format: PQ01 (single module pendant insert)
• Function: White 5 lux LED work light + yellow 40 mm mushroom momentary pushbutton
• Supply voltage: 12/24V AC/DC
• Light output: 5 lux white LED
• Button head: Yellow 40 mm mushroom, momentary action
• Designed for Giovenzana GMP/PQ pendant housings
• IP65 ingress protection
• Suitable for crane, hoist, and machine maintenance pendant stations
• Part number: GMS169
• Manufacturer: Giovenzana International B.V.
