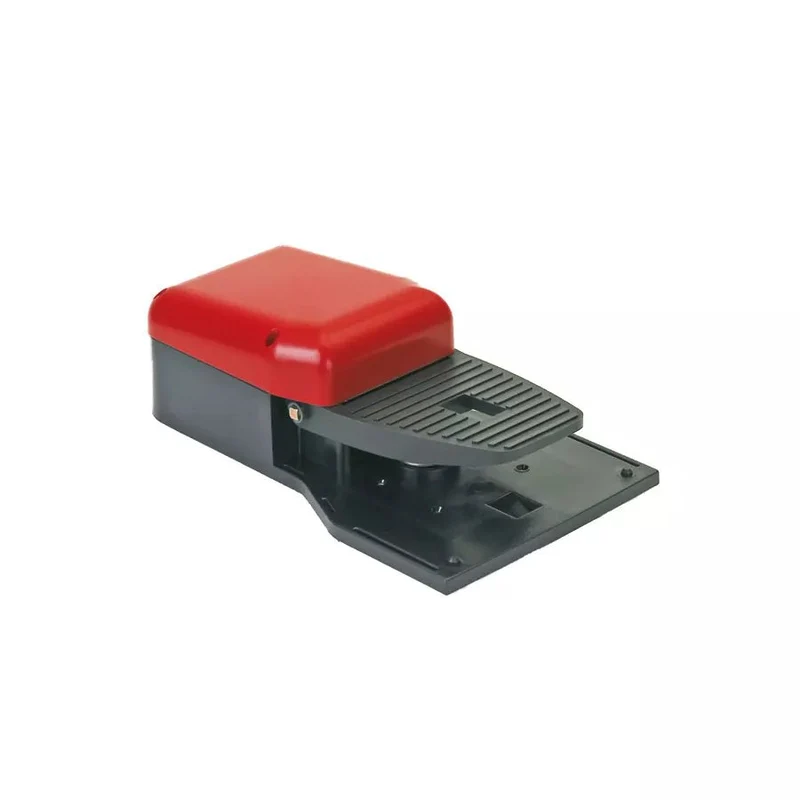

IP7006I Giovenzana Single Foot Switch 1NO+1NC No Trigger Mechanism

The Giovenzana IP7006I is a single-pedal industrial foot switch with 1NO+1NC contact output and no trigger mechanism. The spring-return pedal is held down to maintain the contact state, releasing the pedal resets the switch. It is used to free both hands of the operator for machine control in press, welding, assembly, and similar industrial applications.

• Type: Single foot switch, spring-return (momentary)
• Contacts: 1NO + 1NC
• Trigger mechanism: None (standard spring-return action)
• Protection: IP65 (protected against dust and low-pressure water jets)
• Housing: Robust industrial plastic enclosure with guard cover
• Suitable for press, welding, assembly line, and machine tool control
• Compliant with IEC 60947-5-1
• Part number: IP7006I
• Manufacturer: Giovenzana International B.V.
