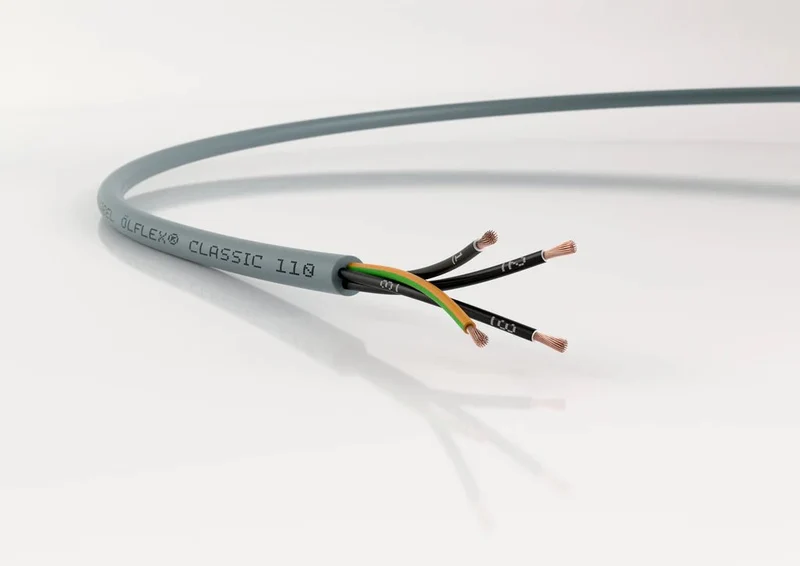

Lapp 1119005 ÖLFLEX CLASSIC 110 Control Cable 5G0.5 300/500V

The Lapp 1119005 is an ÖLFLEX CLASSIC 110 flexible control cable with 5 cores of 0.5mm² (5G0.5), including a green/yellow PE conductor, rated 300/500V. Unshielded with numbered cores + 1 green/yellow PE, transparent PVC outer sheath, oil-resistant. Sold per metre, cut from reel.

Technical specifications:

• Part number: 1119005
• Manufacturer: Lapp
• Series: ÖLFLEX CLASSIC 110
• Core configuration: 5G0.5
• Conductor cross-section: 0.5mm² per core
• Rated voltage: 300/500V
• Conductor: Fine-stranded copper, Class 5 to IEC 60228
• Shielding: Unshielded
• Core identification: numbered cores + 1 green/yellow PE
• Outer sheath: PVC, transparent, oil-resistant
• Temperature range: -15°C to +70°C (moving), -40°C to +80°C (fixed)
• Flame retardancy: IEC 60332-1-2
• Sold: Per metre (cut to length)

Applications:

• Control cabinet wiring in machine tools and industrial machinery
• Connecting sensors, actuators and control devices to PLCs
• Internal wiring of distribution boards and switchgear
• General flexible control wiring in industrial environments

Compliant with IEC 60228, IEC 60332-1-2. RoHS compliant.

Also known as: Lapp 1119005, ÖLFLEX CLASSIC 110 5G0.5, Lapp control cable 5 core 0.5mm², flexible control cable 5G0.5, Lapp OLFLEX 110 5G0.5.
