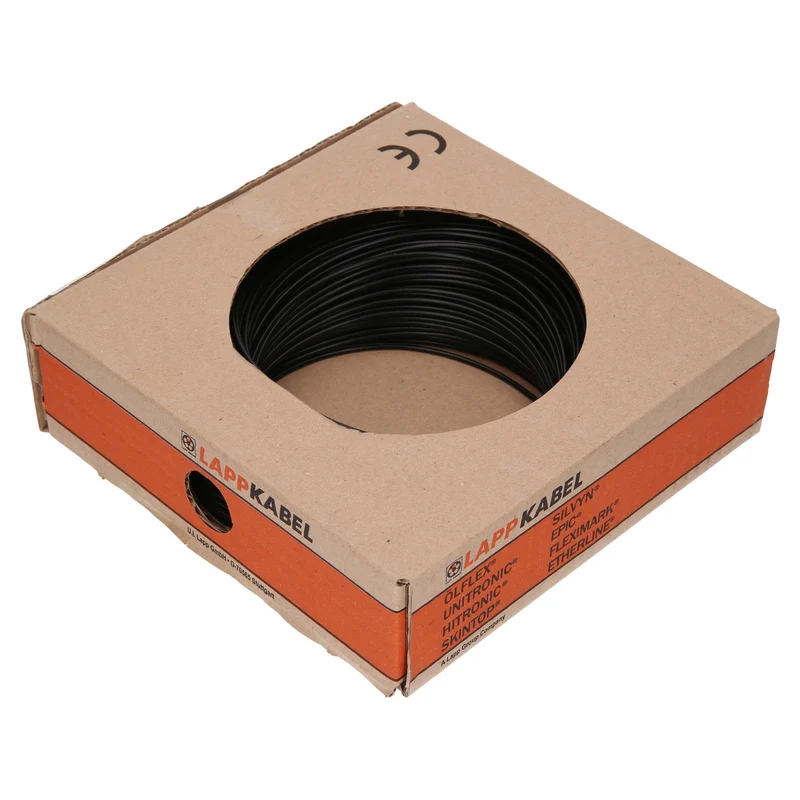

Lapp 4520015 H07V-K Flexible Cable 10.0mm² Black 100m

The Lapp 4520015 is an H07V-K single-core flexible cable with 10.0mm² cross-section in Black PVC insulation, supplied as a 100m coil. Rated 450/750V with Class 5 fine-stranded copper conductor to IEC 60228. Used for internal wiring of distribution boards, control cabinets and general fixed installation up to 750V.

Technical specifications:

• Part number: 4520015
• Manufacturer: Lapp
• Cable type: H07V-K
• Conductor cross-section: 10.0mm²
• Colour: Black
• Rated voltage: 450/750V
• Conductor: Fine-stranded copper, Class 5 to IEC 60228
• Insulation: PVC
• Temperature range: -15°C to +70°C
• Flame retardancy: IEC 60332-1-2
• Standard: HAR H07V-K
• Sold: 100m coil

Applications:

• Internal wiring of distribution boards, control cabinets and switchgear
• Electrical panel building and machine wiring
• Fixed installation wiring in buildings and industrial facilities
• General flexible wiring up to 750V

Also known as: Lapp 4520015, H07V-K 10.0mm² Black, single-core flexible cable 10.0mm², HAR wiring cable Black.
