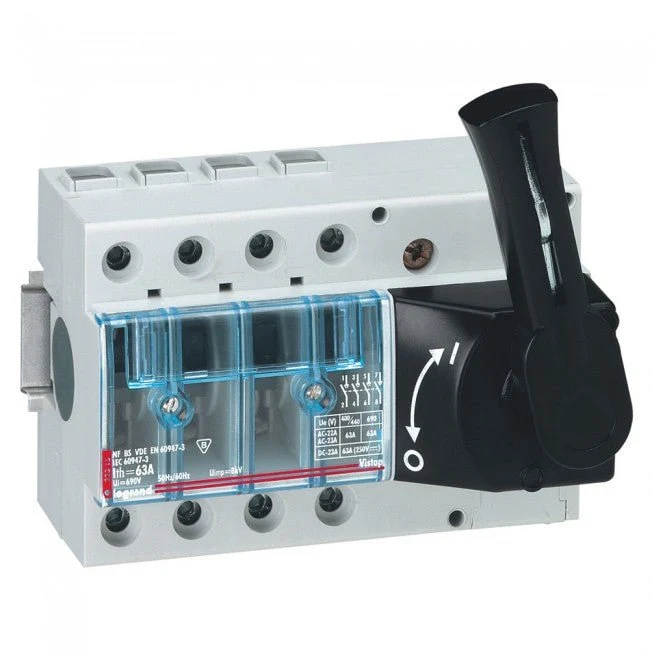

Legrand 022515 Vistop Isolating Switch 63A 4P Black Handle

The Legrand 022515 is a Vistop 4-pole isolating switch rated 63 A, providing visible on-load isolation for industrial and tertiary distribution. It mounts on DIN rail (EN 60715) with cage-clamp terminals and accepts a padlockable front handle for lockout / tagout procedures.

Technical specifications:

• Catalog reference: 022515
• Manufacturer: Legrand
• EAN: 3245060225155
• Number of poles: 4
• Rated current (In): 63 A
• Rated voltage: 690 V AC
• power rating ac23 400v: 35 kW
• short circuit current iq: 7 kA
• control type: Front-mounted direct control
• handle colour: Black
• handle lockable: Yes
• contact type: Self-cleaning with snap-action engagement/disengagement
• Connection type: Cage terminal with screw fastening
• Mounting: DIN rail EN 60715
• Width (modules): 7
• Degree of protection (IP): IP2X
• Standards: IEC 60947-3

Features and benefits:

• Visible isolation with positive contact engagement satisfies lockout / tagout requirements under EN 60204-1.
• Self-cleaning contacts with snap-action engagement provide reliable switching life under heavy load.
• Padlockable handle accepts up to three 6 mm padlocks in the open position for safe maintenance.
• Cage-clamp terminals accommodate solid and stranded copper conductors without ferrules for fast assembly.

Applications:

• Main and sub-distribution isolation in commercial, tertiary and small industrial installations.
• On-load circuit breaking with visible isolation for compliance with EN 60204-1 / EN 60947-3.
• Safety isolation upstream of motors, machine tools and process equipment requiring lockout / tagout.
• Replacement of legacy load-break switches in retrofit projects requiring 63 A throughput.

Also known as: Legrand 022515, 022515, Vistop Isolating / Load-Break Switches.
