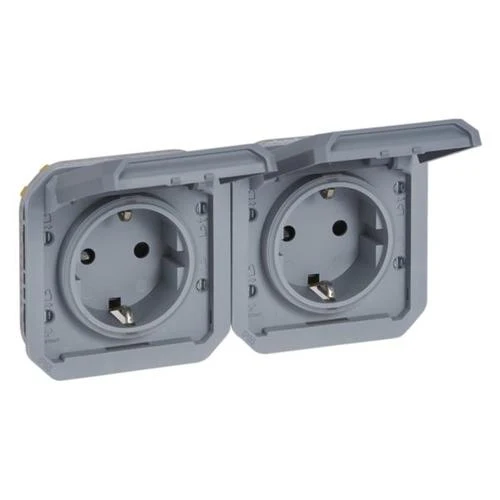

Legrand 069576L Plexo Double Prewired German Socket 16A 250V Grey

The Legrand 069576L is part of the Plexo™ (Weatherproof) range. Plexo double prewired horizontal German standard socket-outlet 16A 250V Mechanism Grey.

Technical specifications:

• Catalog reference: 069576L
• Manufacturer: Legrand
• EAN: 3414971879249
• product type: Socket outlet with protective contact CEE 7/3 (type F)
• number of socket outlets: 2
• prewired: Yes
• nominal current: 16 A
• Nominal voltage: 250 V
• Degree of protection (IP): IP55
• Impact resistance (IK): IK08
• Colour: Grey
• RAL reference: 7046
• Connection type: Push-in clamp
• with hinged lid: Yes
• with enhanced contact protection: Yes
• Material: Thermoplastic
• Halogen-free: Yes
• Operating temperature: -10 to 40 °C
• Storage temperature: -25 to 60 °C
• Terminal capacity: 1.5-2.5 mm²
• cable section: 1.5-2.5 mm²
• device width mm: 141.5
• device height mm: 70.5
• device depth mm: 48.1
• Number of modules: 4
• Frequency: 50-60 Hz
• Voltage type: AC

Features and benefits:

• Halogen-free thermoplastic reduces toxic emissions in the event of fire.
• Compatible with the Plexo wiring-device range for matched waterproof installation.

Applications:

• Garages, cellars, workshops, and other dusty or damp interior locations.
• Outdoor weatherproof installations on terraces, in gardens, and at campsites.
• Industrial kitchens and wash-down areas requiring IP55 protection.
• Surface or flush wiring projects using the Plexo modular range.

Also known as: Legrand 069576L, 069576L, Plexo (Weatherproof).
