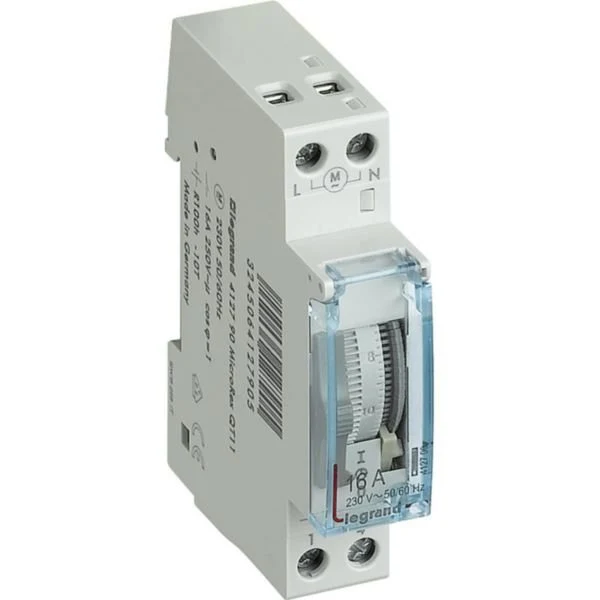

Legrand 412790 Programmable Time Switch Vertical Dial Daily 100h Reserve

The Legrand 412790 is part of the Time Switch & Timer range. Programmable Time Switch Vertical Dial Daily Program 100h Working Reserve.

Technical specifications:

• Catalog reference: 412790
• Manufacturer: Legrand
• EAN: 3245064127905
• Dimensions (W × H × D): 17.5 × 83 × 60 mm
• Mounting: DIN rail
• number of channels: 1
• supply voltage: 230 V AC
• Frequency: 50-60 Hz
• autonomy hours: 100
• accuracy per day: 2.5 s
• program 24h: Yes
• quartz controlled: Yes
• shortest switching time: 15 min
• manual operation suitable: Yes
• switching preselection: Yes
• nominal switching current 250v: 16 A
• potential free contact: Yes
• Degree of protection (IP): IP20
• Operating temperature: -10 to 55 °C
• Storage temperature: -10 to 60 °C
• Colour: Grey
• RAL reference: 7035
• Halogen-free: Yes
• Terminal capacity: 1.5-4 mm²
• Connection type: Cable
• battery type: Nickel metal hydride accumulator
• contact type: N/O contact
• accuracy: ± 5 minutes
• dial type: Vertical

Features and benefits:

• Manufactured by Legrand for professional electrical installations.

Applications:

• Professional electrical installations using the Time Switch & Timer range.

Also known as: Legrand 412790, 412790, Time Switch & Timer.
