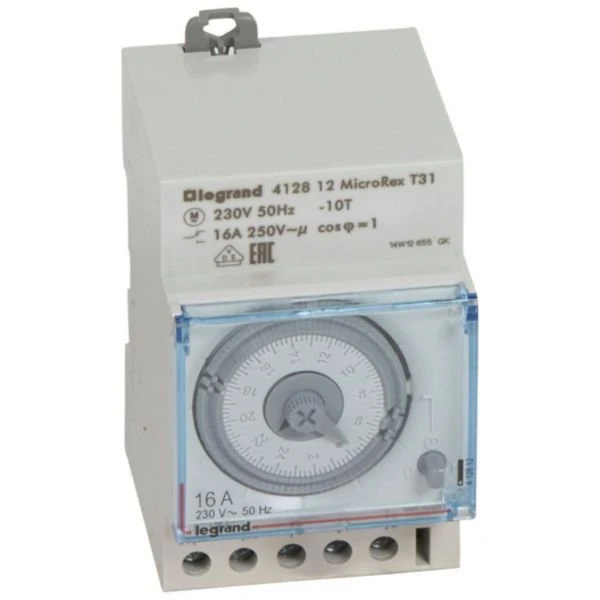

Legrand 412812 Programmable Time Switch Horizontal Dial Daily No Reserve

The Legrand 412812 is part of the Time Switch & Timer range. Programmable Time Switch Horizontal Dial Daily Program No Working Reserve.

Technical specifications:

• Catalog reference: 412812
• Manufacturer: Legrand
• EAN: 3245064128124
• Dimensions (W × H × D): 52.5 × 83 × 60 mm
• Mounting: DIN rail
• number of channels: 1
• supply voltage: 230 V AC
• Frequency: 50-60 Hz
• program type: 24h program
• mains synchronous: Yes
• quartz controlled: No
• shortest switching time: 30 min
• program shift divide: 15 min
• manual operation: Yes
• switching preselection: Yes
• nominal switching current 250v: 16 A
• potential free switch contact: Yes
• Degree of protection (IP): IP20
• Width (modules): 3
• Operating temperature: -10 to 55 °C
• Storage temperature: -10 to 60 °C
• Colour: Grey
• RAL reference: 7035
• Halogen-free: Yes
• Terminal capacity: 1.5-4 mm²
• Connection type: Cable
• accuracy: ± 5 minutes
• dial type: Horizontal

Features and benefits:

• Manufactured by Legrand for professional electrical installations.

Applications:

• Professional electrical installations using the Time Switch & Timer range.

Also known as: Legrand 412812, 412812, Time Switch & Timer.
