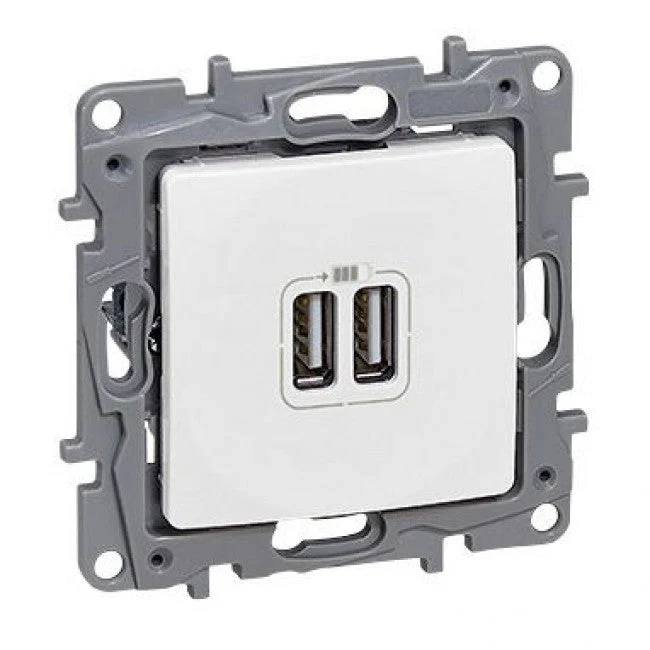

Legrand 764594 Niloé Double USB Charging Socket White

The Legrand 764594 is a Niloé niloé double usb charging socket white flush-mounting mechanism rated 10 A at 250 V~. It is finished in White, supplied with cover plate and support, and uses screw terminals for wired connection.

Technical specifications:

• Catalog reference: 764594
• Manufacturer: Legrand
• EAN: 3414970804723
• product type: USB charging socket (double)
• Number of modules: 2
• usb a ports: 2
• usb c ports: 0
• operating voltage: 100-240 V
• Frequency: 50-60 Hz
• max output current: 3000 mA
• output voltage: 5 V
• power consumption: 0.068 W
• usb output power: 15 W
• Connection type: Screwed terminal
• Mounting: Flush-mounted
• Colour: White
• RAL reference: 9003
• device width mm: 76
• device height mm: 76
• device depth mm: 42
• min box depth mm: 40
• Degree of protection (IP): IP40
• Impact resistance (IK): IK04
• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 70 °C
• Voltage type: AC
• power delivery: No
• cable section: 1.5-2.5 mm²
• Halogen-free: Yes

Features and benefits:

• Niloé range delivers contemporary finish at an entry-level price point for residential and light-commercial installations.
• Halogen-free thermoplastic reduces toxic emissions in the event of fire.
• Screw terminals provide a robust, vibration-resistant connection.
• Compatible with the full Niloé plate and frame system for a coordinated installation.

Applications:

• Domestic lighting control in residential rooms, hallways and staircases.
• Light commercial interiors specifying a coordinated entry-level finish.
• New-build and refurbishment projects using Niloé multi-gang plate assemblies.
• Switching applications up to 10 AX at 250 V~ in flush-mounted Batibox enclosures.

Also known as: Legrand 764594, 764594, Niloé USB Sockets.
