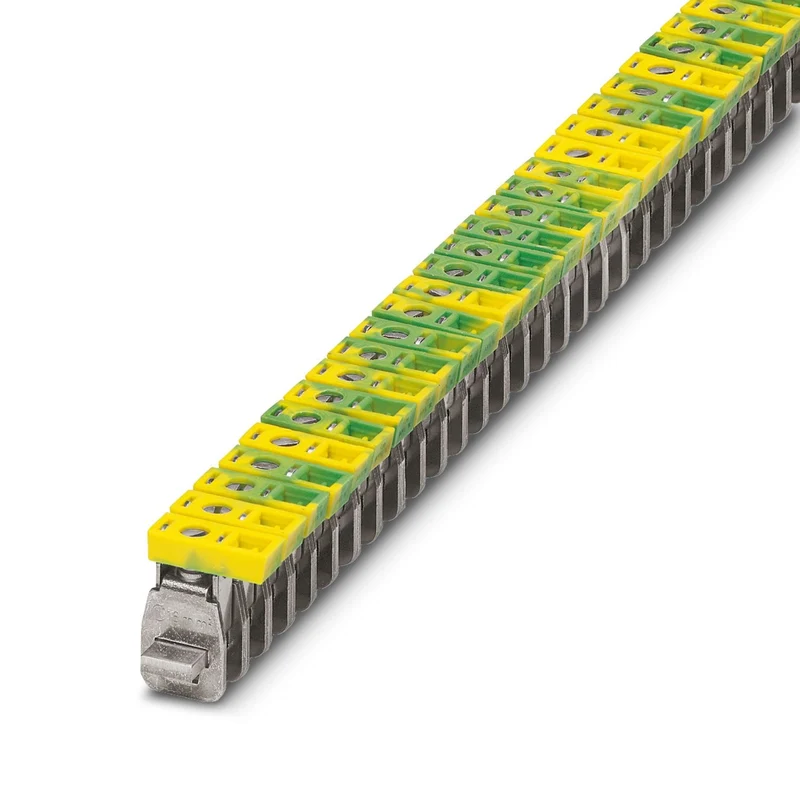

Phoenix Contact 0423027 AKG 16 GNYE Connection terminal block 76A

The Phoenix Contact AKG 16 GNYE is a green-yellow connection terminal block for neutral busbar mounting, rated at 300 V and 76 A with a nominal cross-section of 16 mm². Screw connection via M5 thread secures conductors from 1.5 mm² to 16 mm², making this terminal suitable for high-current neutral and protective earth conductor termination in low-voltage installations.

Technical specifications:

• Part designation: AKG 16 GNYE
• Catalog number: 0423027
• Manufacturer: Phoenix Contact
• EAN: 4017918002008
• Product type: Installation terminal block
• Nominal voltage: 300 V
• Nominal current: 76 A
• Current carrying capacity of neutral busbar: 140 A
• Connection method: Screw connection, M5 thread, tightening torque 2.5 - 3 Nm
• Nominal cross-section: 16 mm²
• Conductor cross-section (rigid and flexible): 1.5 mm² - 16 mm²
• Conductor cross-section AWG: 14 - 6
• 2 conductors same cross-section (rigid/flexible): 1.5 mm² - 6 mm²
• 2 conductors with TWIN ferrule (plastic sleeve): 1.5 mm² - 10 mm²
• Stripping length: 16 mm
• Mounting type: Neutral busbar
• Color: Green-yellow

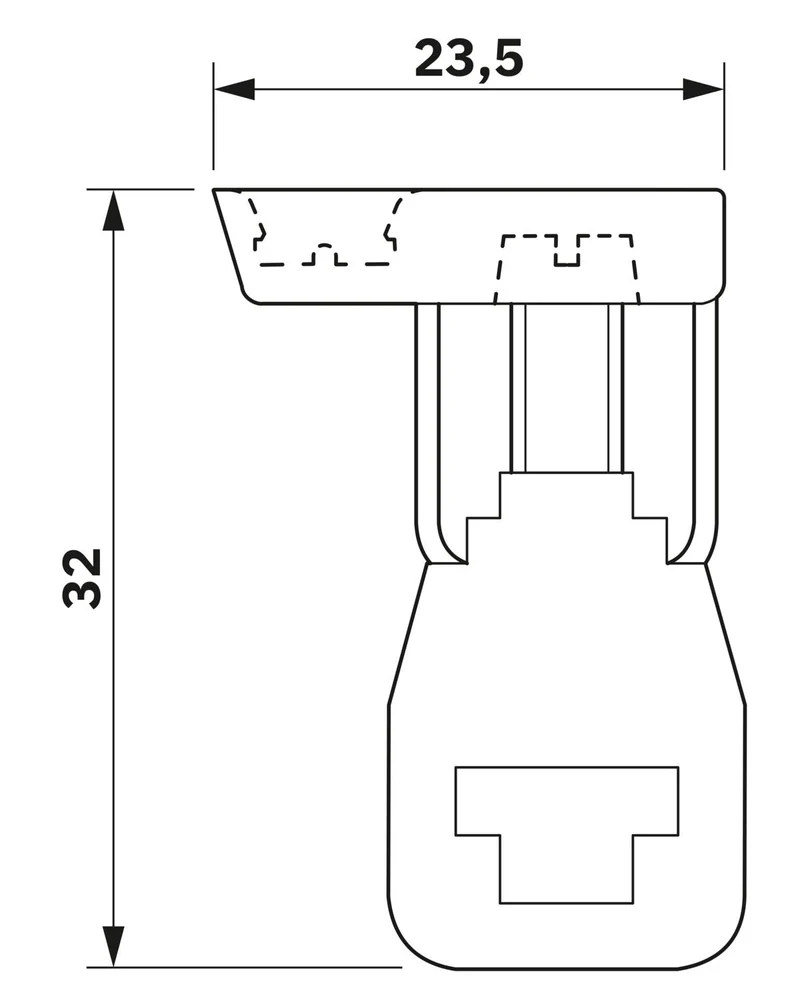

• Dimensions (W x H x D): 9.8 mm x 23.4 mm x 32 mm
• Weight (excluding packing): 10.55 g
• Insulating material: PA (polyamide)
• Flammability rating: UL 94 V2
• Operating temperature: -60°C - 110°C
• Storage temperature: -25°C - 60°C
• Maximum power dissipation: 2.43 W
• Certifications: CSA, UL Recognized (E60425), EAC
• Country of origin: India

Features and benefits:

• Green-yellow color coding enables immediate visual identification of neutral and protective earth conductors
• Neutral busbar current carrying capacity of 140 A supports high-load distribution beyond the rated terminal current
• Accepts rigid, flexible, and ferrule-terminated conductors across a wide 1.5 mm² - 16 mm² range
• Wide operating temperature range of -60°C to 110°C suits demanding industrial environments
• RoHS and REACH compliant - no hazardous substances above threshold limits

Applications:

• Neutral conductor termination in low-voltage distribution boards and consumer units
• Protective earth busbar connections in industrial control panels
• High-current neutral busbar assemblies in machinery and plant wiring
• Building installation switchgear requiring 16 mm² conductor capacity

Compliant with UL 94 V2 flammability requirements. Approved under CSA (13631) and UL Recognized (E60425).

Also known as: Phoenix Contact AKG 16 GNYE, Phoenix 0423027, green-yellow neutral terminal block 16 mm².
