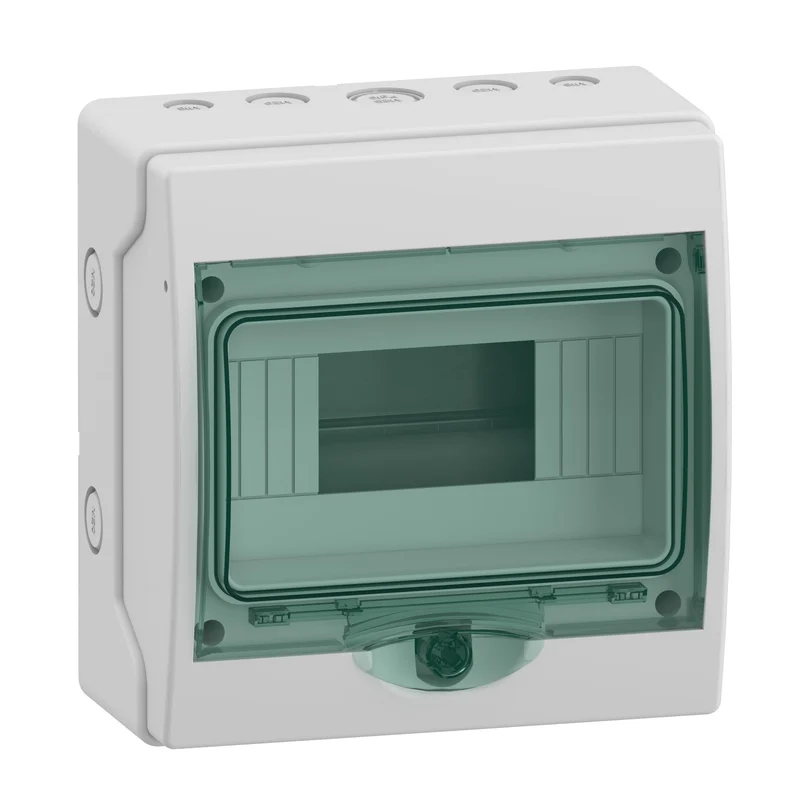

Schneider 13978 Mini Kaedra Mureva Enclosure 1x8 Modules IP65 IK09

Schneider Electric 13978 is a Mini Kaedra surface-mount weatherproof enclosure from the Mureva range, designed for modular devices on DIN rail with a 1 row x 8 module (18 mm) capacity, IP65 sealing and IK09 impact resistance. The Class II double-insulated housing is moulded in self-extinguishing polymer with a transparent green hinged door.

Technical specifications:

• Catalog reference: 13978
• Manufacturer: Schneider Electric
• Range: Mureva (Mini Kaedra enclosure)
• Enclosure type: Weatherproof mini-enclosure for modular devices
• Mounting: Surface-mount
• Capacity: 1 horizontal row, 8 x 18 mm modules (16 x 9 mm pitch)
• DIN rail mounting, split mounting plate
• Rated current [In]: 63 A
• Dissipated power: 15 W
• 5 PG/ISO knockouts
• Insulation: Class II, double insulation
• Front face: Transparent
• Dimensions: 195 x 200 x 112 mm (W x H x D), 56 mm interior depth
• Material: Self-extinguishing polymer
• Colour: Transparent green door, light grey housing (RAL 7035)
• IP rating: IP65 (IEC 60529)
• IK rating: IK09 (EN 50102)
• Glow-wire test: 650 °C (IEC 60695-2-1)
• UV resistance: Class 3 (ISO 4582)
• Overvoltage category: II
• Operating temperature: -25 to +60 °C
• Standards: IEC 60670-1, IEC 60670-24, EN 50262, IEC 60695-2-1
• Included: 1 marking kit
• Optional: Security lock

Features and benefits:

• IP65 sealed enclosure protects modular devices from dust and water jets in damp or outdoor locations
• IK09 impact rating withstands rough industrial and site environments
• Class II double insulation removes the need for an earth-bonded enclosure
• Transparent door allows status of breakers and switches to be checked without opening
• Self-extinguishing polymer construction conforms to 650 °C glow-wire requirements

Applications:

• Garden, garage, workshop and outbuilding sub-distribution
• Construction sites and temporary installations
• Agricultural and farm buildings
• Damp utility rooms, basements and car parks

Note: this catalog reference is marked discontinued by Schneider Electric. Functional replacement may be available from the same product range.
