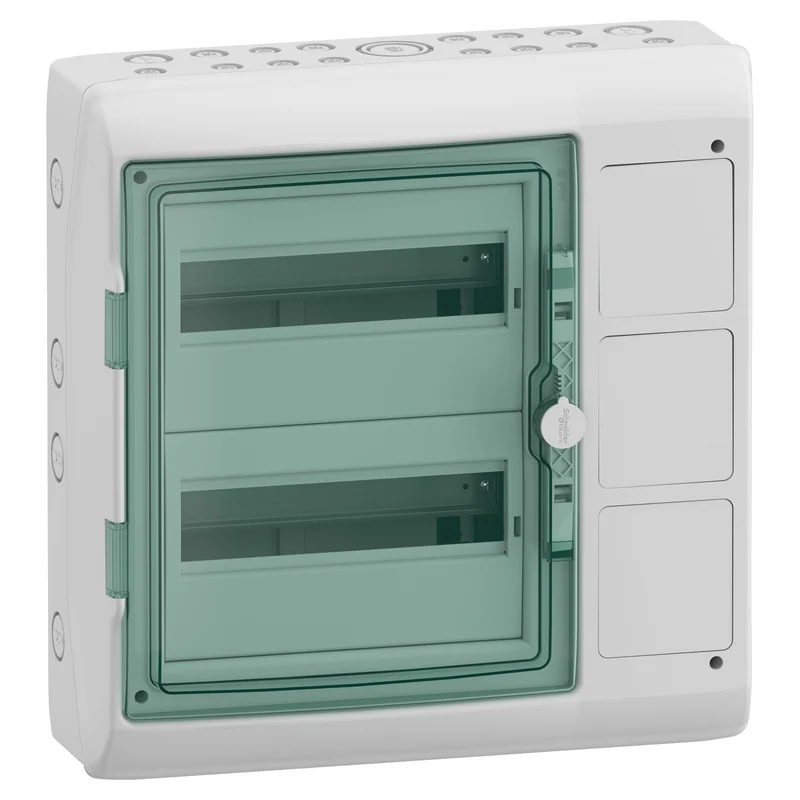

Schneider 13991 Kaedra Mureva Interface Enclosure 24 Modules IP65 IK09

Schneider Electric 13991 is a Kaedra surface-mount weatherproof interface enclosure from the Mureva range, providing a 24 x 18 mm module capacity (2 rows of 12) for modular devices plus a 3-opening interface zone for socket-outlets and pushbutton controls. The Class II double-insulated housing is IP65/IK09 rated and supplied with a 22-way distribution terminal block.

Technical specifications:

• Catalog reference: 13991
• Manufacturer: Schneider Electric
• Range: Mureva (Kaedra enclosure with interface)
• Enclosure type: Weatherproof enclosure for modular devices with interface zone
• Mounting: Surface-mount
• Capacity: 2 horizontal rows, 24 x 18 mm modules total (12 per row, 24 x 9 mm pitch)
• Interface zone: 3 openings (1 plate for 65 x 85 power-outlet, 3 plates for pushbutton control)
• DIN rail mounting, split mounting plate, base dimension 90 x 100 mm
• Rated current [In]: 90 A
• 17 PG/ISO knockouts
• Terminal block: 1 earth terminal (screw connection) with 22 outputs
• Distribution terminal outputs: 11 x 16 mm² + 11 x 10 mm²
• Insulation: Class II, double insulation
• Front face: Reversible, transparent
• Dimensions: 448 x 460 x 160 mm (W x H x D), 88 mm interior depth
• Material: Self-extinguishing polymer housing
• Colour: Transparent green door, light grey housing (RAL 7035)
• IP rating: IP65 (IEC 60529)
• IK rating: IK09 (EN 50102)
• Glow-wire test: 650 °C (IEC 60695-2-1)
• UV resistance: Class 3 (ISO 4582)
• Overvoltage category: II
• Operating temperature: -25 to +60 °C
• Standards: IEC 60670-1, IEC 60670-24, EN 50262, IEC 60695-2-1
• Included: 2 marking kits, 2 cable clamps, 1 plate for 65 x 85 socket-outlet, 3 plates for pushbutton control, 1 22-hole terminal block, 1 terminal block support
• Optional: Security lock

Features and benefits:

• Combined modular device housing and pre-equipped interface zone for socket-outlets and pushbuttons in a single enclosure
• 22-way distribution terminal block (16 mm² + 10 mm²) simplifies internal wiring
• IP65 / IK09 protection suits damp, dusty and impact-prone environments
• Class II double insulation removes the need for a bonded metallic enclosure
• Reversible transparent door allows left- or right-hand installation

Applications:

• Workshop, garage and warehouse sub-distribution with local socket-outlets
• Construction sites and temporary installations needing combined supply and control
• Agricultural and farm buildings
• Outdoor and damp service-room control points

Note: this catalog reference is marked discontinued by Schneider Electric. Functional replacement may be available from the same product range.
