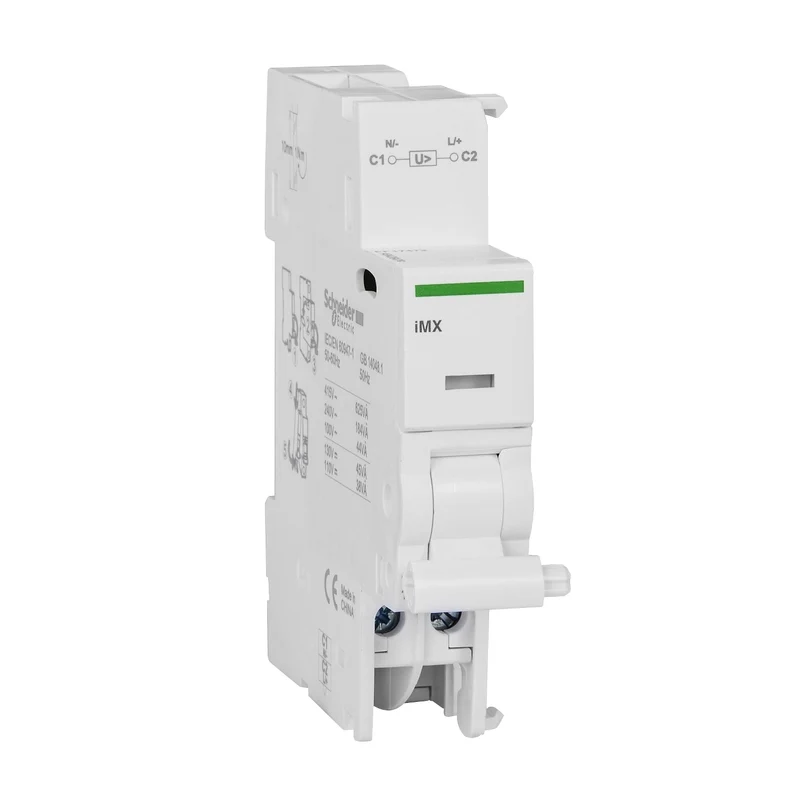

Schneider A9A26476 Acti9 iMX Shunt Trip Release 110-415 VAC

The A9A26476 is an Acti9 iMX shunt trip release from Schneider Electric, designed to trip a compatible Acti9 circuit breaker remotely when a control voltage is applied to its coil.

Technical specifications:

• Range: Acti9
• Product type: Shunt trip release
• Device name: iMX
• Control voltage: 110...415 V AC 50/60 Hz
• Local signalling: Action indicator
• Colour: White
• Mounting: Clip-on
• Mounting support: DIN rail
• Terminals: Clamp terminal - 2 cable(s) 2.5 mm - flexible with cable end
• Tightening torque: 1 N.m
• Width: 18 mm
• Standards: EN/IEC 60947-1
