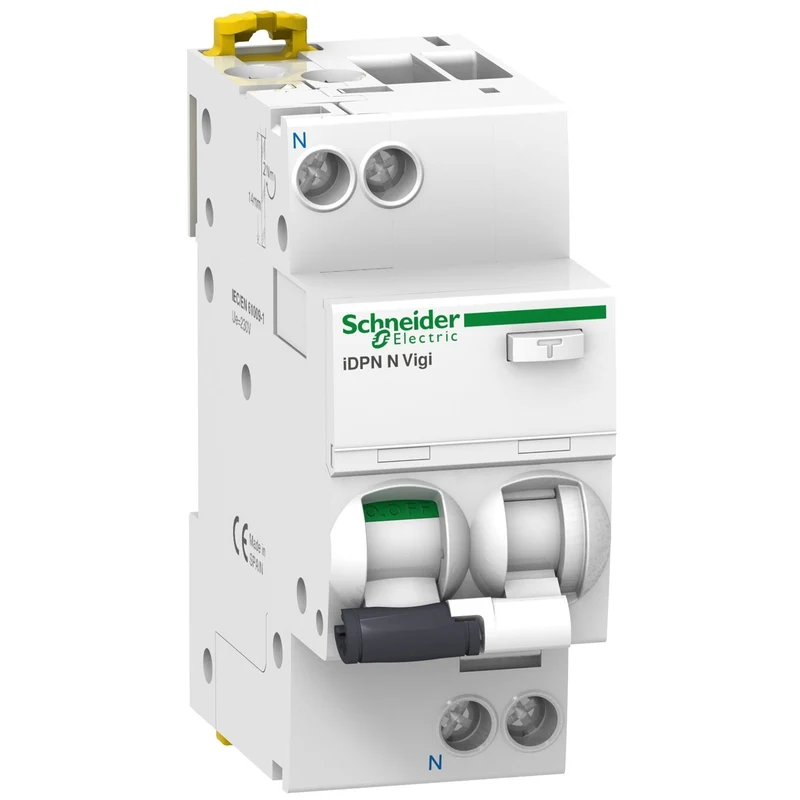

Schneider A9D31606 Acti9 iDPN N Vigi RCBO 1P+N 6A 6kA 30mA

The Schneider Electric A9D31606 is an Acti9 iDPN N Vigi RCBO (residual current circuit breaker with overcurrent protection), combining overload, short-circuit, and earth-leakage protection in a compact 1P+N format for single-phase circuits.

• Reference: A9D31606
• Range: Acti9
• Model: iDPN N Vigi
• Type: RCBO (residual current circuit breaker with overcurrent protection)
• Poles: 1P+N
• Rated current (In): 6 A
• Breaking capacity (Icn): 6000 A at 230–240 V AC 50 Hz
• RCD sensitivity (IΔn): 30 mA
• RCD type: Type AC
• Rated voltage (Ue): 230–240 V AC 50 Hz
• Standard: EN/IEC 61009-2-1
