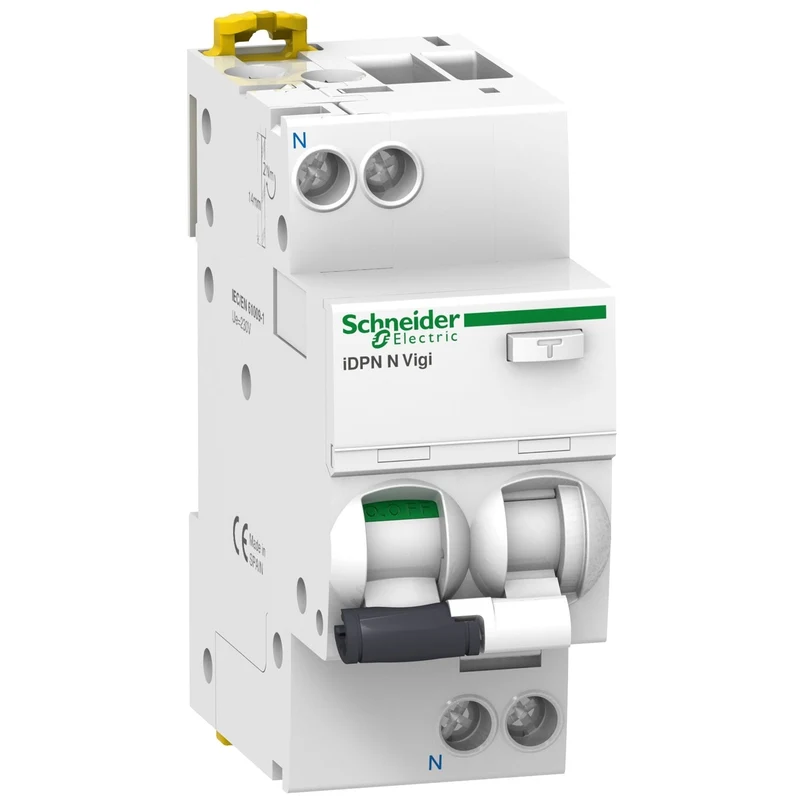

Schneider A9D31610 Acti9 iDPN N Vigi RCBO 1P+N 10A 6kA 30mA AC

The Schneider Electric A9D31610 is a 1P+N RCBO from the Acti 9 range, combining overcurrent and residual-current protection in a single module for single-phase circuits in residential and commercial distribution boards.

• Reference: A9D31610
• Range: Acti 9
• Model: iDPN N Vigi
• Type: RCBO (residual-current circuit breaker with overcurrent protection)
• Poles: 1P + N
• Rated current (In): 10 A
• Breaking capacity (Icn): 6000 A at 230...240 V AC 50 Hz
• Residual-current sensitivity (IΔn): 30 mA, Type AC
• Rated voltage (Ue): 230...240 V AC 50 Hz
• Standard: EN/IEC 61009-2-1
