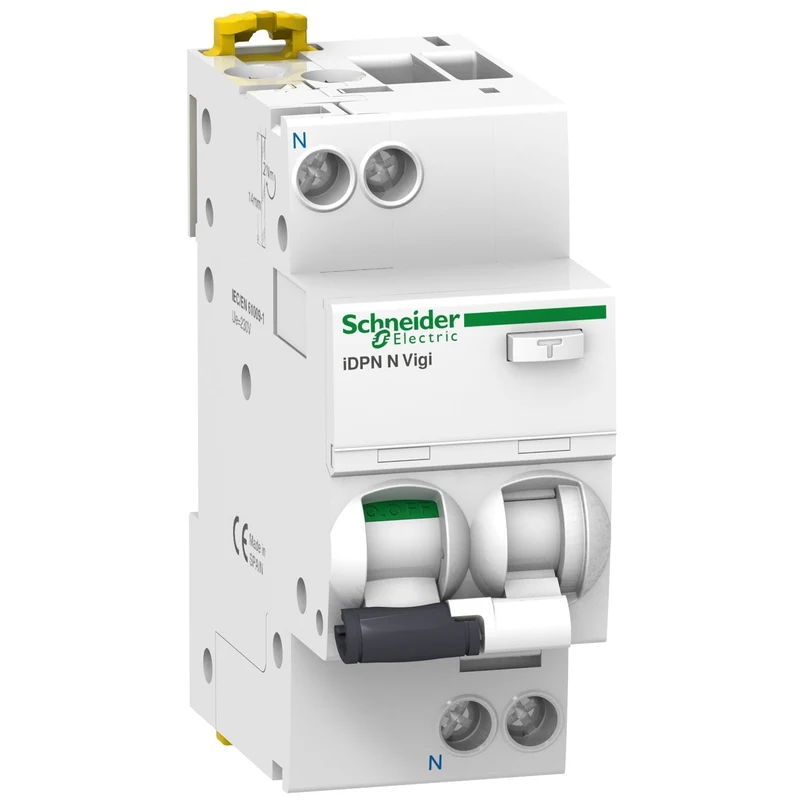

Schneider A9D31616 Acti9 iDPN N Vigi RCBO 1P+N 16A 6kA 30mA

The Schneider Electric A9D31616 is an Acti 9 iDPN N Vigi RCBO (residual current circuit breaker with overcurrent protection), combining residual current and overcurrent protection in a single 1P+N module for single-phase 230–240 V AC installations.

• Reference: A9D31616
• Range: Acti 9
• Model: iDPN N Vigi
• Type: RCBO (residual current circuit breaker with overcurrent protection)
• Poles: 1P + N
• Rated current (In): 16 A
• RCD sensitivity (IdN): 30 mA
• RCD type: AC
• Breaking capacity (Icn): 6000 A at 230–240 V AC 50 Hz
• Rated voltage (Ue): 230–240 V AC 50 Hz
• Standard: EN/IEC 61009-2-1
