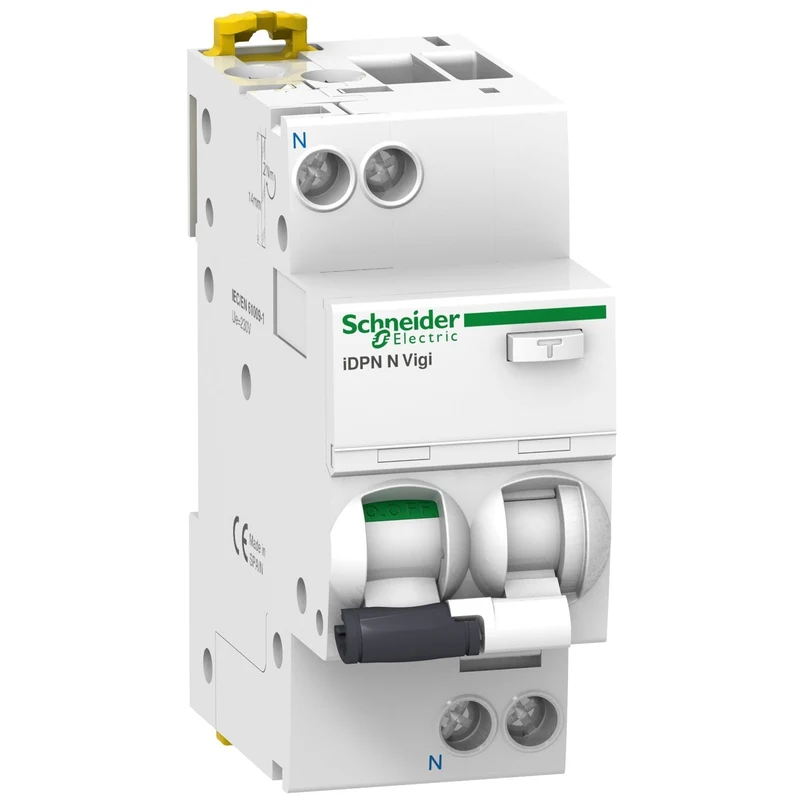

Schneider A9D31620 Acti9 iDPN N Vigi RCBO 1P+N 20A 6kA 30mA

The Schneider Electric A9D31620 is the Acti 9 iDPN N Vigi RCBO, providing combined overcurrent and residual-current protection on single-phase 1P+N final circuits at 230–240 V AC 50 Hz.

• Reference: A9D31620
• Range: Acti 9
• Model: iDPN N Vigi
• Type: RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
• Poles: 1P + N
• Rated current (In): 20 A
• Breaking capacity (Icn): 6000 A at 230–240 V AC 50 Hz
• Residual-current sensitivity (IΔn): 30 mA
• RCD type: AC
• Rated voltage (Ue): 230–240 V AC 50 Hz
• Standard: EN/IEC 61009-2-1
