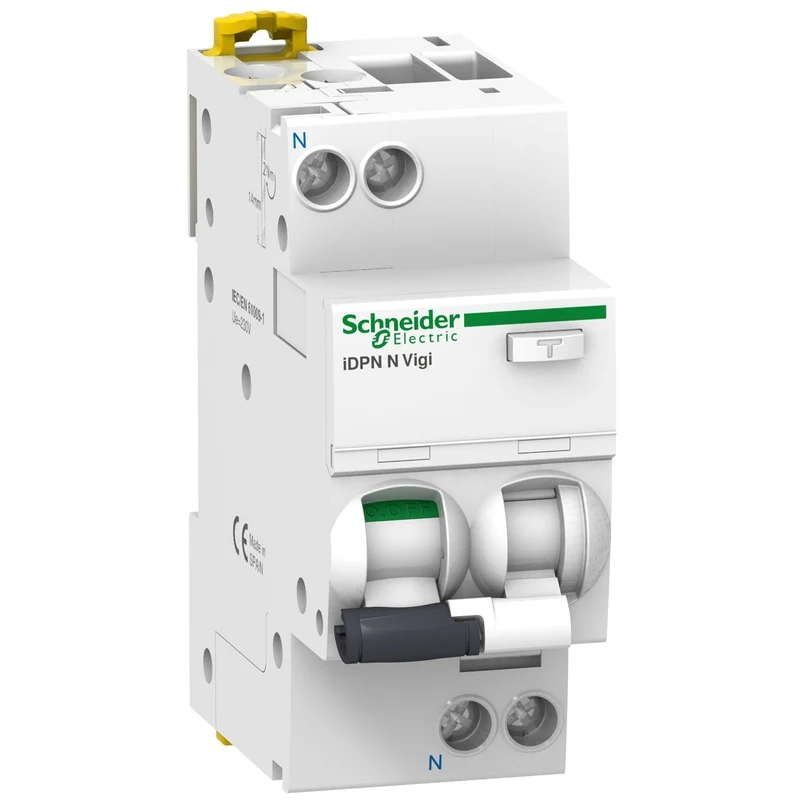

Schneider A9D31625 Acti9 iDPN N Vigi RCBO 1P+N 25A 30mA 6kA

The Schneider Electric A9D31625 is an Acti 9 iDPN N Vigi residual current circuit breaker with overcurrent protection (RCBO), providing combined earth-fault and overcurrent protection for single-phase circuits in a compact 1P+N format.

• Reference: A9D31625
• Range: Acti 9
• Model: iDPN N Vigi
• Type: RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
• Poles: 1P + N
• Rated current (In): 25 A
• Breaking capacity (Icn): 6000 A at 230...240 V AC 50 Hz per EN/IEC 61009-2-1
• RCD sensitivity (IΔn): 30 mA
• RCD type: AC
• Rated voltage (Ue): 230...240 V AC 50 Hz
• Standard: EN/IEC 61009-2-1
