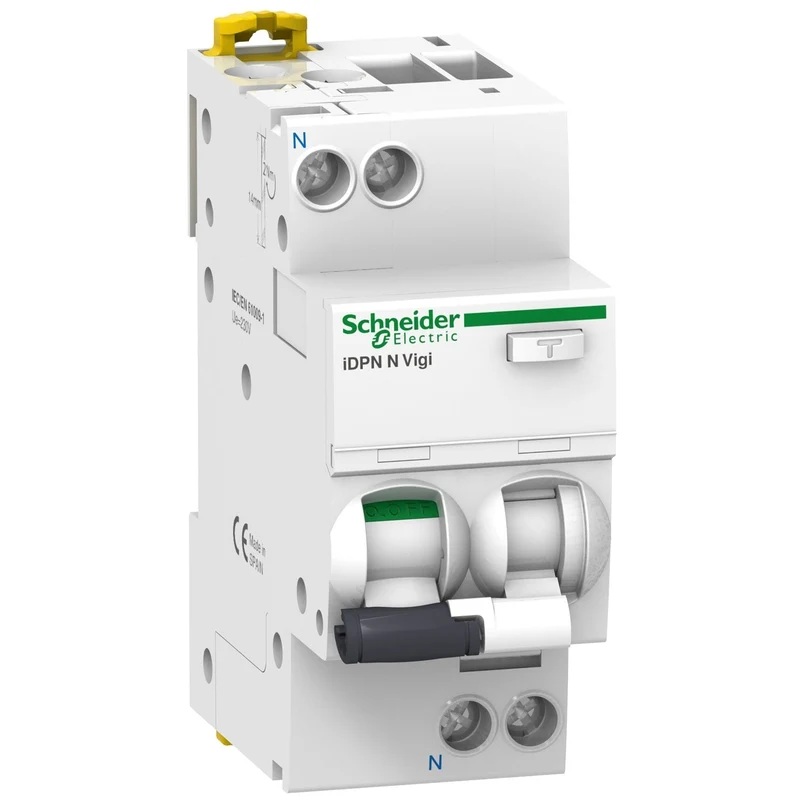

Schneider A9D56616 Acti9 iDPN N Vigi RCBO 1P+N B 16A 6kA 30mA

The Schneider Electric A9D56616 is a 1P+N residual current circuit breaker with overcurrent protection (RCBO) from the Acti 9 range, designed to protect single-phase circuits against both overcurrent and earth-leakage faults.

• Reference: A9D56616
• Range: Acti 9
• Model: iDPN N Vigi
• Type: RCBO (residual current circuit breaker with overcurrent protection)
• Poles: 1P + N
• Rated current (In): 16 A
• Tripping curve: B
• Breaking capacity (Icn): 6000 A at 230–240 V AC 50 Hz, per EN/IEC 61009-2-1
• Residual-current sensitivity (IΔn): 30 mA, Type A
• Rated voltage (Ue): 230–240 V AC 50 Hz
