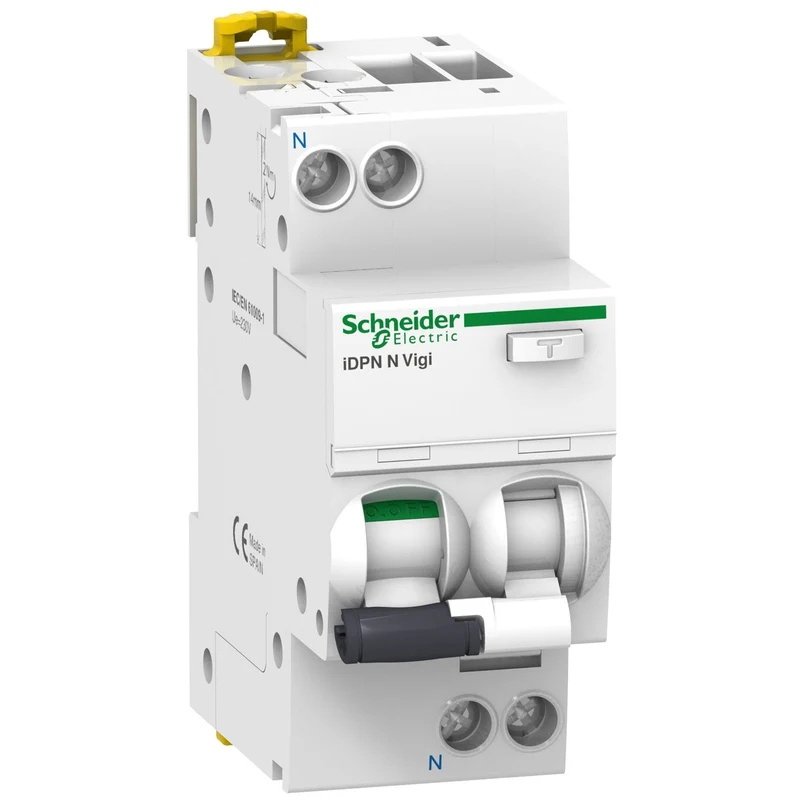

Schneider A9D56620 Acti9 iDPN N Vigi RCBO 1P+N 20A B 6000A 30mA Type A

The Schneider Electric Acti9 iDPN N Vigi (A9D56620) is a 1P+N RCBO (residual current circuit breaker with overcurrent protection) from the Acti9 range, combining overload and short-circuit protection with residual current earth fault detection in a single compact device.

• Reference: A9D56620
• Range: Acti9
• Model: iDPN N Vigi
• Type: RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
• Poles: 1P+N
• Rated current: 20A
• Tripping curve: B
• Breaking capacity: 6000A
• RCD sensitivity: 30mA
• RCD type: Type A
