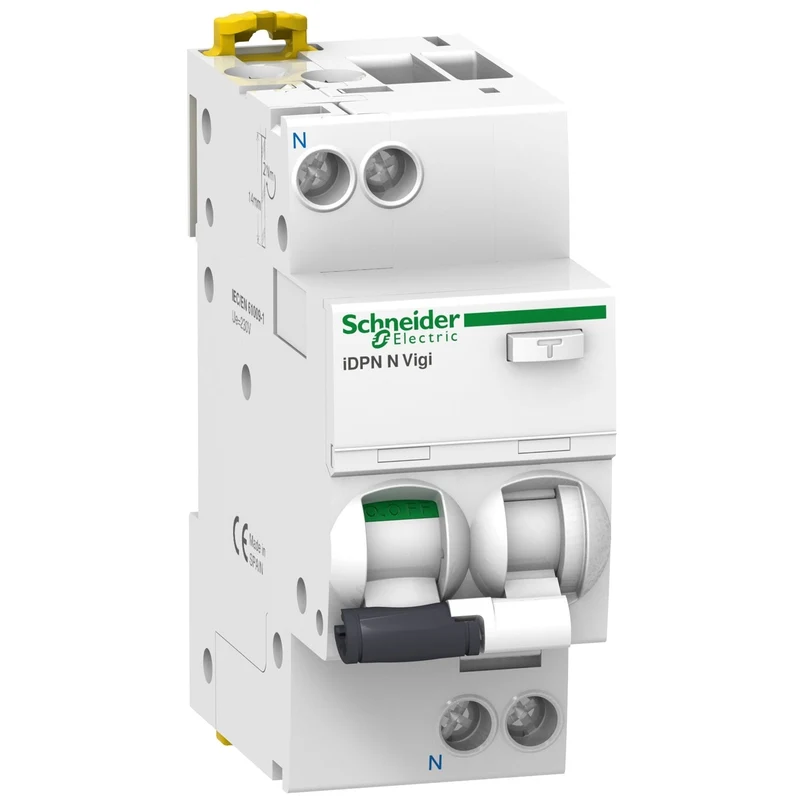

Schneider A9D56625 Acti9 iDPN N Vigi RCBO 1P+N 25A B 6kA 30mA Type A

The Schneider Electric Acti9 iDPN N Vigi (A9D56625) is a 1P+N RCBO (residual current circuit breaker with overcurrent protection) from the Acti9 range, combining miniature circuit breaker and residual current device protection in a single unit. It provides overcurrent protection via a B trip curve alongside earth-fault protection at 30mA Type A sensitivity, rated at 25A with a 6000A breaking capacity.

• Reference: A9D56625
• Range: Acti9
• Model: iDPN N Vigi
• Type: RCBO (residual current circuit breaker with overcurrent protection)
• Poles: 1P+N
• Rated current: 25A
• Trip curve: B
• Breaking capacity: 6000A
• RCD sensitivity: 30mA
• RCD type: Type A
