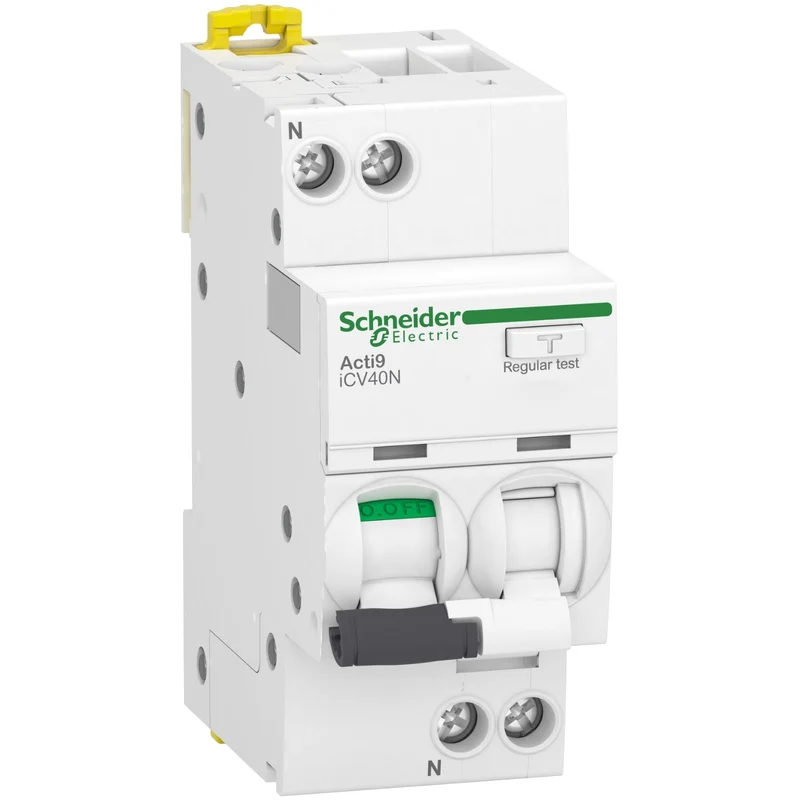

Schneider A9DC3632 Acti9 iCV40N RCBO 1P+N 32A C 6kA Type A 30mA

The Schneider Electric A9DC3632 is an Acti9 iCV40N residual current breaker with overcurrent protection (RCBO), rated 1P+N 32A. It combines earth fault and overcurrent protection in a single device, providing protection against earth leakage, overloads, and short circuits.

• Reference: A9DC3632
• Manufacturer: Schneider Electric
• Range: Acti9
• Model: iCV40N
• Type: Residual current breaker with overcurrent protection (RCBO)
• Poles: 1P+N
• Rated current: 32A
• Tripping curve: C
• Breaking capacity: 6000A
• RCD type: A
• RCD sensitivity: 30mA
• Rated voltage: 230V AC 50/60Hz
• Mounting: DIN rail
