Anbieter: SCHNEIDER ELECTRIC

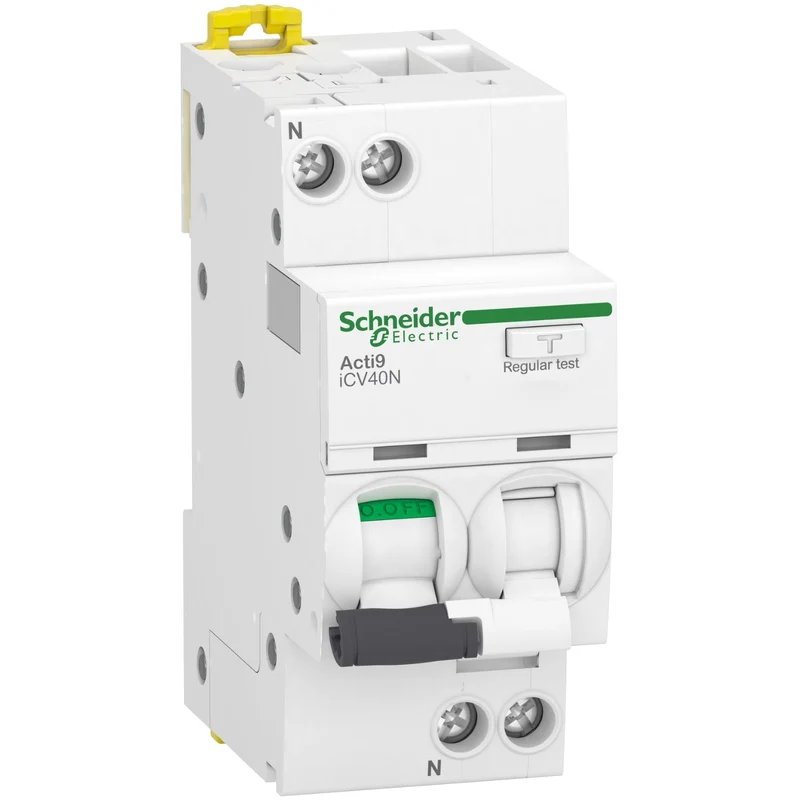

Schneider A9DF3610 Acti9 iCV40N RCBO 1P+N 10A C 6kA Type A-SI 30mA
Beschreibung
The Schneider Electric A9DF3610 is an Acti9 iCV40N residual current breaker with overcurrent protection (RCBO), rated 1P+N 10A. It combines earth fault and overcurrent protection in a single device, with Type A-SI (Super Immunised) earth-leakage protection that resists nuisance tripping from transient leakage currents.
- Reference: A9DF3610
- Manufacturer: Schneider Electric
- Range: Acti9
- Model: iCV40N
- Type: Residual current breaker with overcurrent protection (RCBO)
- Poles: 1P+N
- Rated current: 10A
- Tripping curve: C
- Breaking capacity: 6000A
- RCD type: A-SI (Super Immunised)
- RCD sensitivity: 30mA
- Rated voltage: 230V AC 50/60Hz
- Mounting: DIN rail
