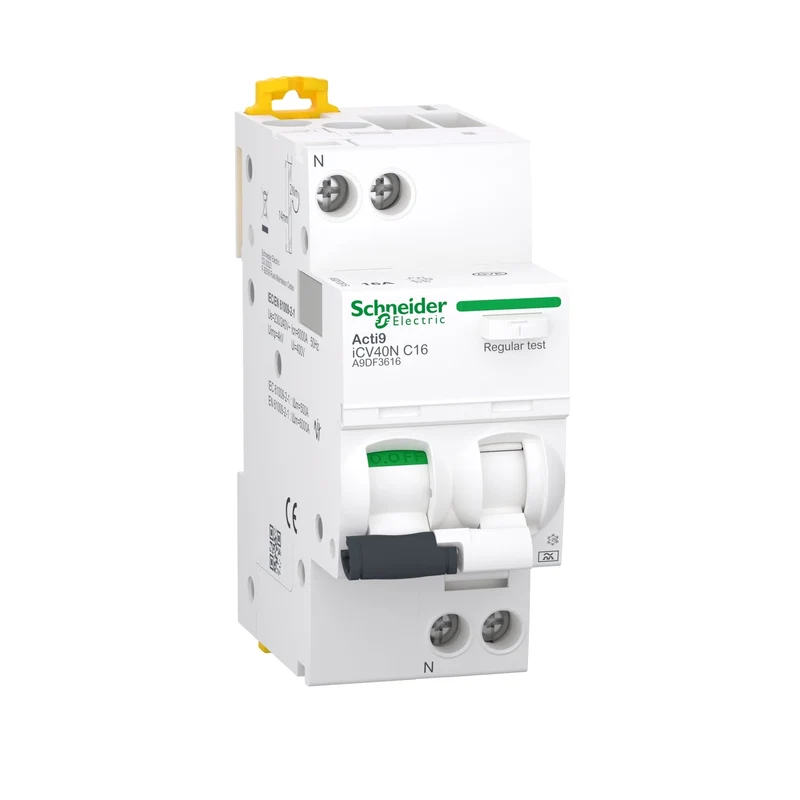

Schneider A9DF3616 Acti9 iCV40N RCBO 1P+N 16A C 6000A A-SI 30mA

The Schneider Electric A9DF3616 is a residual current breaker with overcurrent protection (RCBO) from the Acti9 range, model iCV40N, combining overcurrent and earth fault protection in a single 1P+N device.

• Reference: A9DF3616
• Range: Acti9
• Model: iCV40N
• Type: Residual current breaker with overcurrent protection (RCBO)
• Poles: 1P+N
• Rated current: 16A
• Curve: C
• Breaking capacity: 6000A
• RCD type: A-SI
• RCD sensitivity: 30mA
