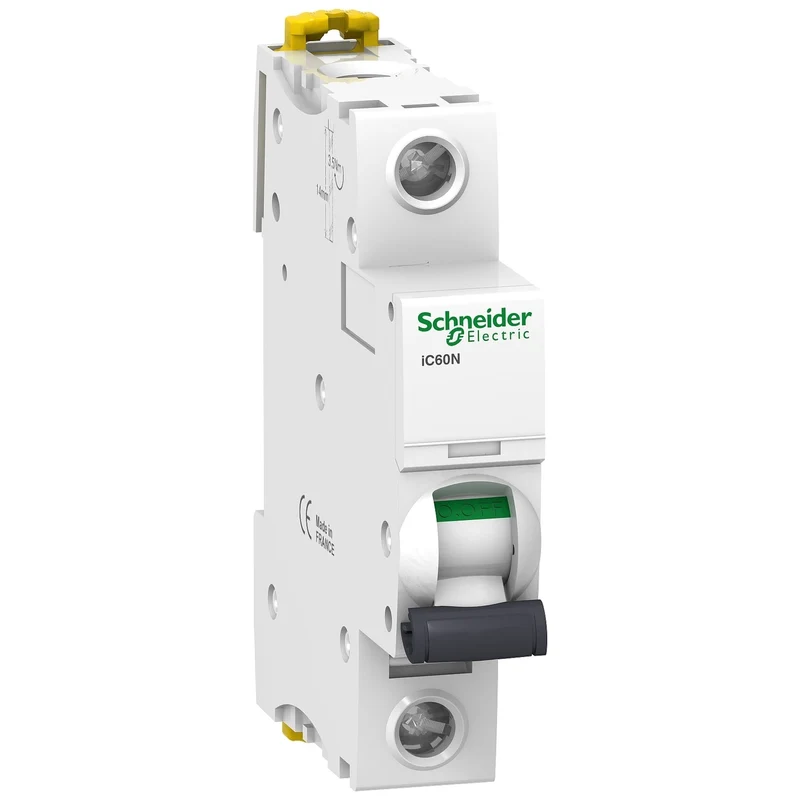

Schneider A9F73120 Acti9 iC60N MCB 1P B 20A 6kA

The Schneider Electric A9F73120 is a 1-pole miniature circuit breaker (MCB) from the Acti 9 iC60 range, providing overcurrent protection in residential and commercial distribution boards.

• Reference: A9F73120
• Range: Acti 9
• Model: iC60N
• Type: Miniature circuit breaker (MCB)
• Poles: 1P
• Rated current (In): 20 A
• Tripping curve: B
• Breaking capacity (Icn): 6000 A at 230 V AC 50/60 Hz per EN/IEC 60898-1
• Rated voltage (Ue): 230 V AC 50/60 Hz
• Utilisation category: Category A per EN 60947-2
