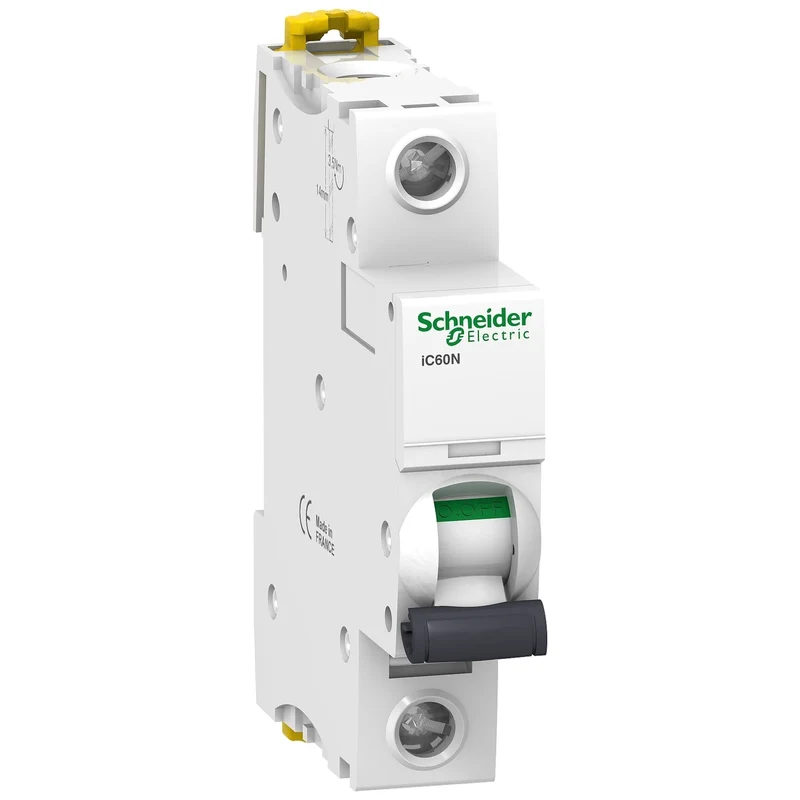

Schneider A9F73163 Acti9 iC60N MCB 1P B 63A 6kA

The Schneider Electric Acti9 iC60N is a 1-pole miniature circuit breaker (MCB) from the Acti 9 range, rated at 63 A with a B tripping curve and a 6 kA breaking capacity. It provides overcurrent and short-circuit protection in residential and commercial distribution boards.

• Reference: A9F73163
• Range: Acti 9
• Model: iC60N
• Type: Miniature circuit breaker (MCB)
• Poles: 1P
• Rated current (In): 63 A
• Tripping curve: B
• Breaking capacity (Icn): 6000 A at 230 V AC 50/60 Hz
• Standard: EN/IEC 60898-1
• Utilisation category: Category A per EN 60947-2
