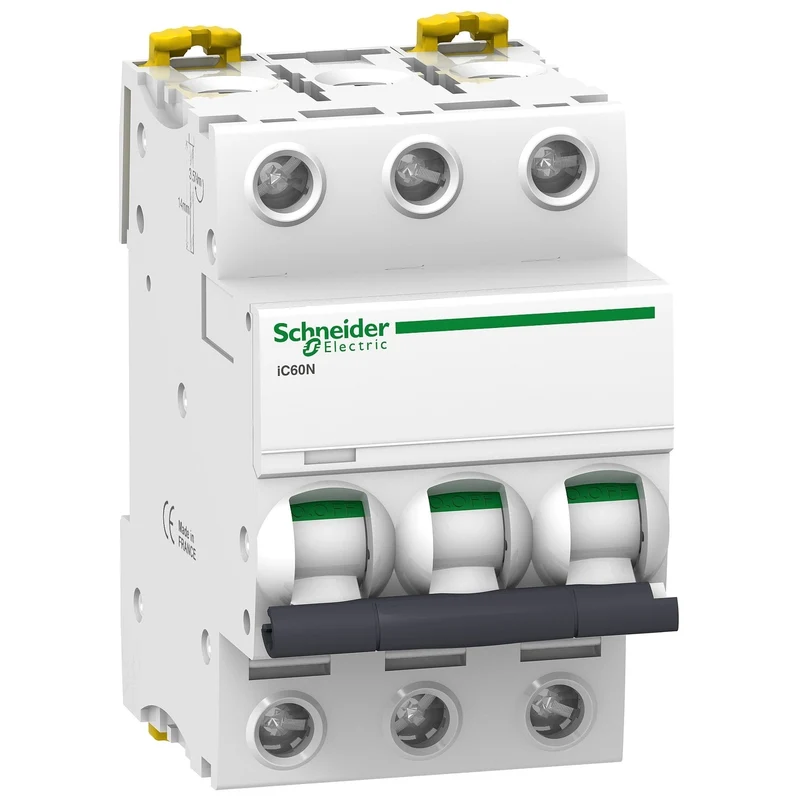

Schneider A9F73310 Acti9 iC60N MCB 3P B 10A 6kA

The Schneider Electric Acti9 iC60N (reference A9F73310) is a 3-pole miniature circuit breaker from the Acti 9 range, designed for overcurrent protection in low-voltage distribution installations.

• Reference: A9F73310
• Range: Acti 9
• Model: iC60N
• Type: Miniature circuit breaker (MCB)
• Poles: 3P
• Rated current (In): 10 A
• Tripping curve: B
• Breaking capacity (Icn): 6000 A at 400 V AC 50/60 Hz
• Rated voltage: 400 V AC 50/60 Hz
• Standard: EN/IEC 60898-1; utilisation category A per EN 60947-2
