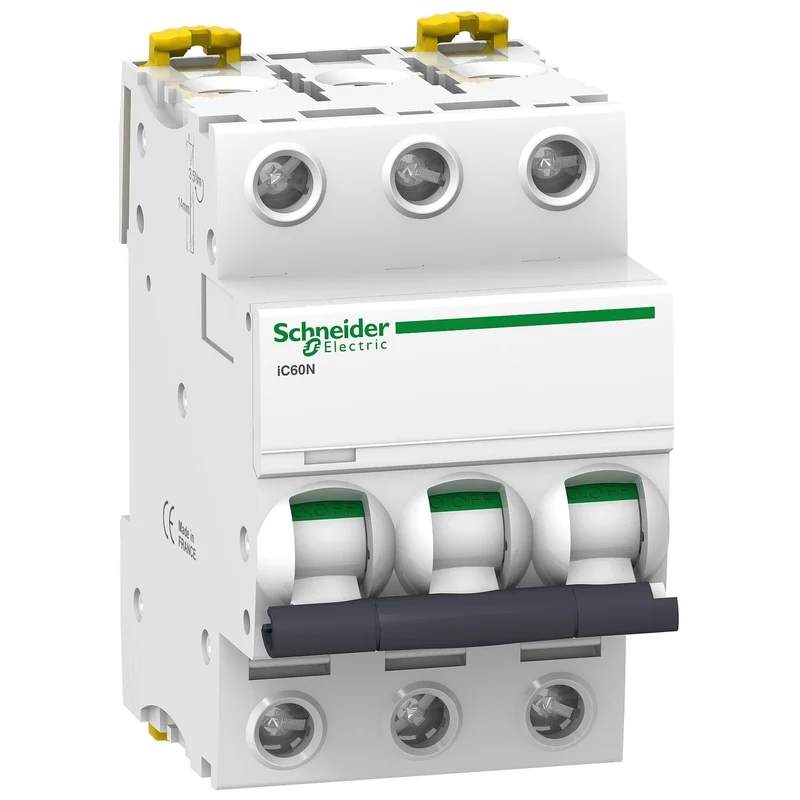

Schneider A9F74302 Acti9 iC60N MCB 3P C 2A 6kA

The Schneider Electric A9F74302 is an Acti 9 iC60N 3-pole miniature circuit breaker (MCB) with a C tripping curve and 2 A rated current, providing overload and short-circuit protection in three-phase circuits.

• Reference: A9F74302
• Range: Acti 9
• Model: iC60N
• Type: Miniature circuit breaker (MCB)
• Poles: 3P
• Rated current (In): 2 A
• Tripping curve: C
• Breaking capacity (Icn): 6000 A at 400 V AC 50/60 Hz
• Utilisation category: Category A
• Standards: EN/IEC 60898-1, EN 60947-2
