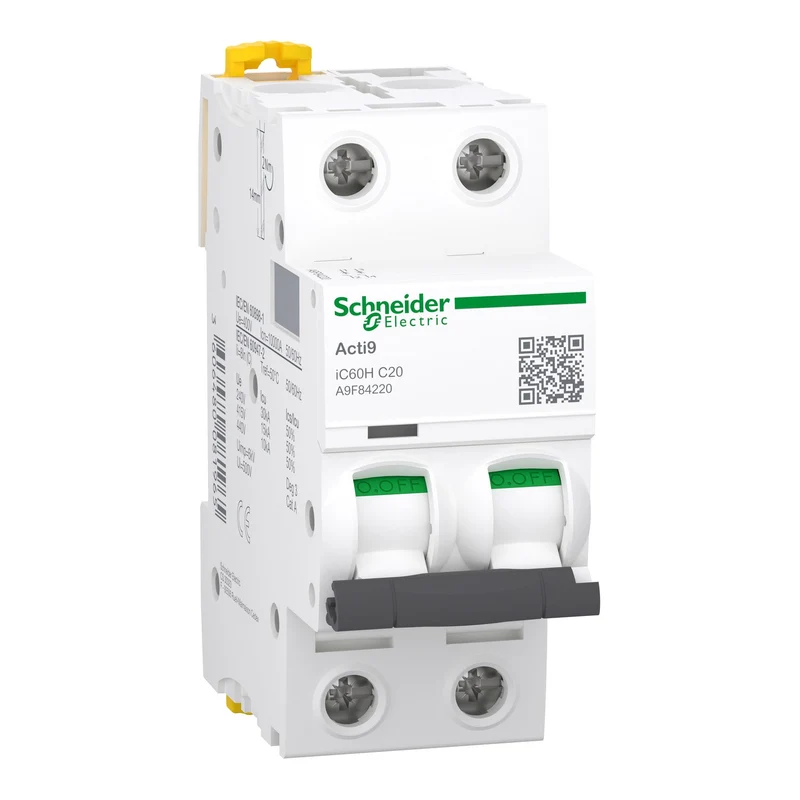

Schneider A9F84220 Acti9 iC60H MCB 2P C 20A 10kA

The Schneider Electric Acti9 iC60H A9F84220 is a 2-pole miniature circuit breaker (MCB) from the Acti 9 range, rated 20 A with a type C tripping curve and 10 kA breaking capacity, for overcurrent and short-circuit protection of circuits.

• Reference: A9F84220
• Range: Acti 9
• Model: iC60H
• Type: Miniature circuit breaker (MCB)
• Poles: 2P
• Rated current (In): 20 A
• Tripping curve: C
• Breaking capacity (Icn): 10000 A at 400 V AC 50/60 Hz per EN/IEC 60898-1
• Utilisation category: Category A per EN 60947-2
