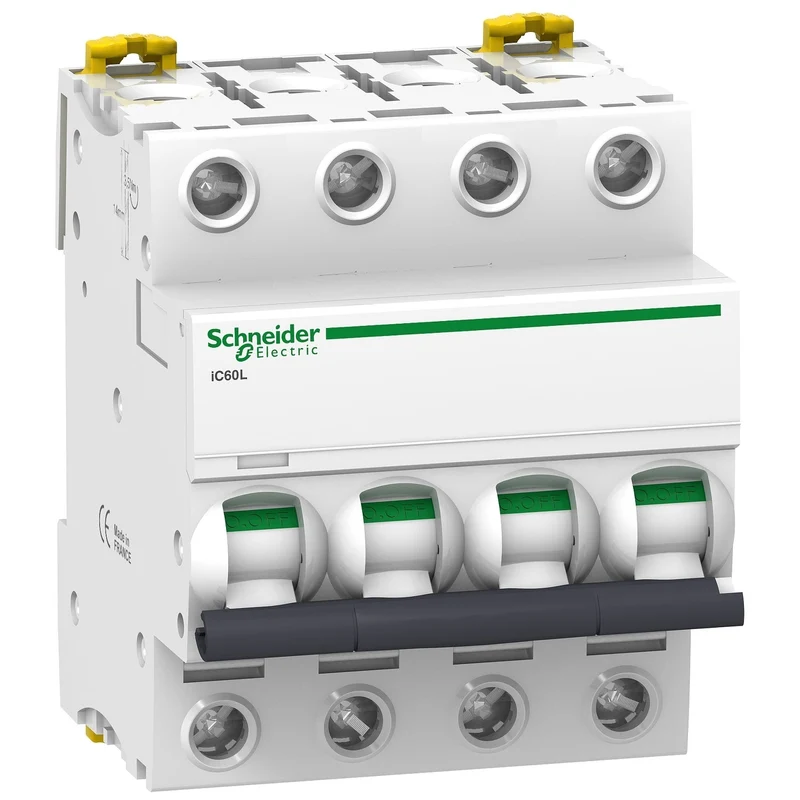

Schneider A9F95432 Acti9 iC60L MCB 4P K 32A 15kA

The Schneider Electric A9F95432 is a 4-pole miniature circuit breaker from the Acti 9 iC60L range, providing overload and short-circuit protection on circuits with high inrush currents, thanks to its K tripping curve and 15 kA breaking capacity.

• Reference: A9F95432
• Range: Acti 9 iC60
• Model: iC60L
• Type: Miniature circuit breaker (MCB)
• Poles: 4P
• Rated current (In): 32 A
• Tripping curve: K
• Breaking capacity (Icn): 15000 A at 400 V AC 50/60 Hz per EN/IEC 60898-1
• Utilisation category: Category A per EN 60947-2
