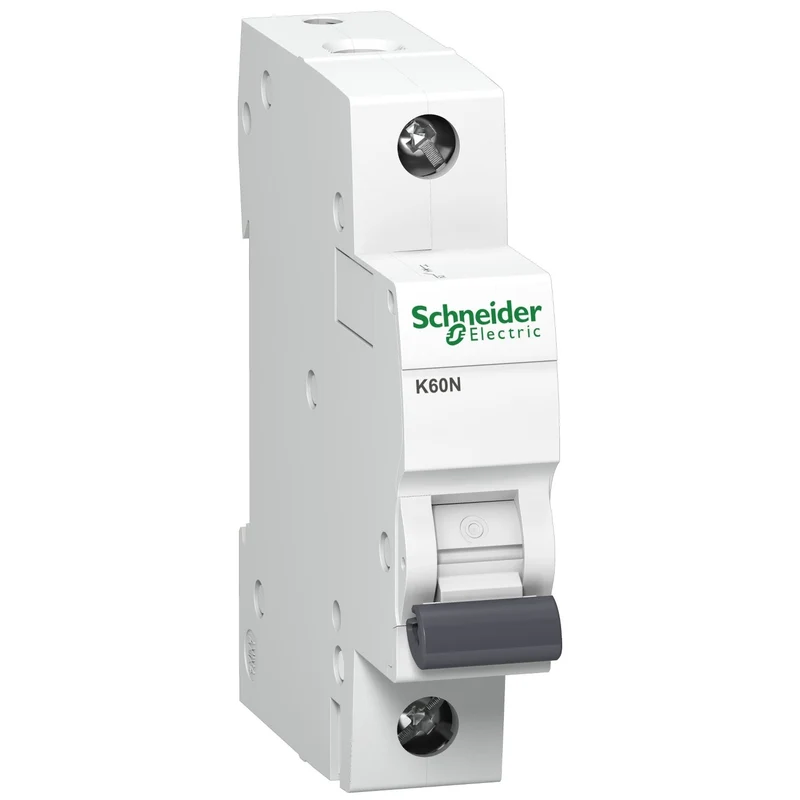

Schneider A9K01120 Acti9 K60N MCB 1P B 20A 6kA

The Schneider Electric A9K01120 is a 1-pole miniature circuit breaker (MCB) from the Acti 9 K60 range, providing overload and short-circuit protection in low-voltage installations.

• Reference: A9K01120
• Range: Acti 9
• Model: K60N
• Type: Miniature circuit breaker (MCB)
• Number of poles: 1P
• Rated current (In): 20 A
• Tripping curve: B
• Breaking capacity (Icn): 6000 A at 230 V AC 50/60 Hz
• Utilisation category: Category A
• Standard: EN/IEC 60898-1, IEC 60947-2
