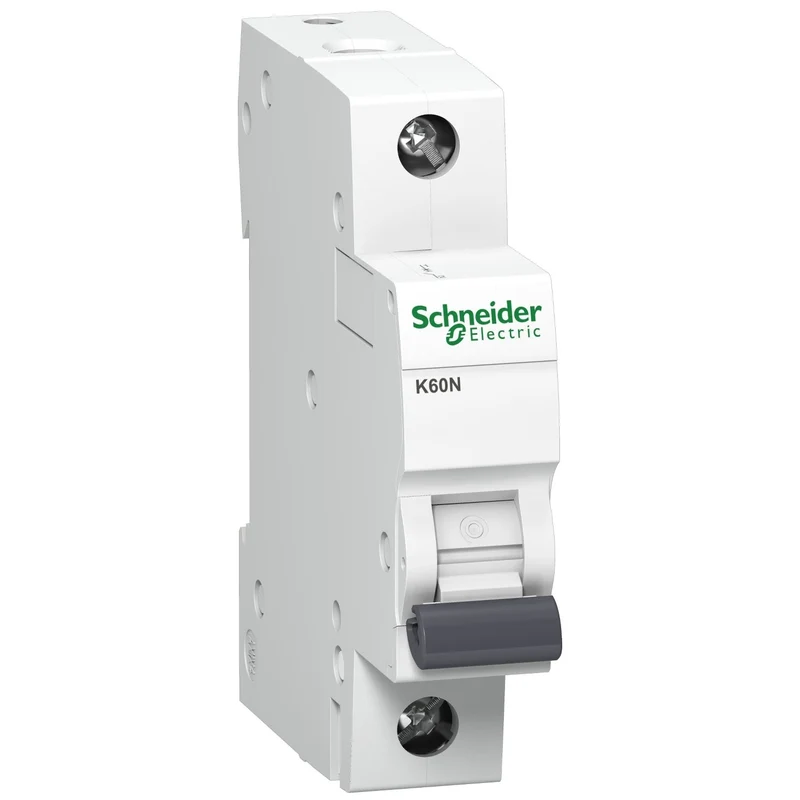

Schneider A9K01132 Acti9 K60N MCB 1P B 32A 6kA

The Schneider Electric A9K01132 is a 1-pole miniature circuit breaker from the Acti 9 K60N series. With a B tripping curve and a 32 A rated current, it provides overcurrent protection in low-voltage final distribution circuits.

• Reference: A9K01132
• Range: Acti 9
• Model: K60N
• Type: Miniature circuit breaker (MCB)
• Poles: 1P
• Rated current (In): 32 A
• Tripping curve: B
• Breaking capacity (Icn): 6000 A at 230 V AC 50/60 Hz
• Rated voltage (Ue): 230 V AC 50/60 Hz
• Utilisation category: Category A (IEC 60947-2)
• Standard: EN/IEC 60898-1
