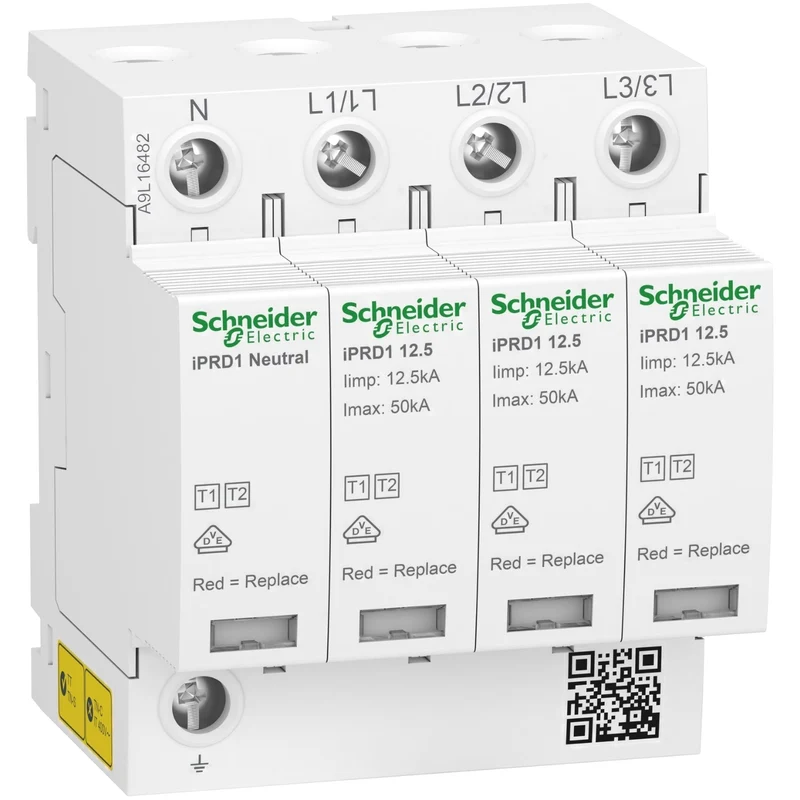

Schneider A9L16482 Acti9 iPRD1 12.5 SPD 3P+N 350V

The Schneider Electric A9L16482 is a pluggable surge protection device (SPD) from the Acti9 iPRD1 range, designed for three-phase plus neutral low-voltage electrical installations to protect equipment against transient overvoltages. The pluggable module design allows replacement without disturbing the base wiring, and the unit includes remote fault-transfer signalling.

• Reference: A9L16482
• Range: Acti9
• Product name: Acti9 iPRD1
• Model: iPRD1 12.5
• Type: Pluggable surge protection device (SPD)
• Poles: 3P+N
• Maximum continuous operating voltage (Uc): 350 V
• Rated voltage (Ue): 230/400 V AC (±10%) at 50/60 Hz
• Remote fault-transfer signalling: included
