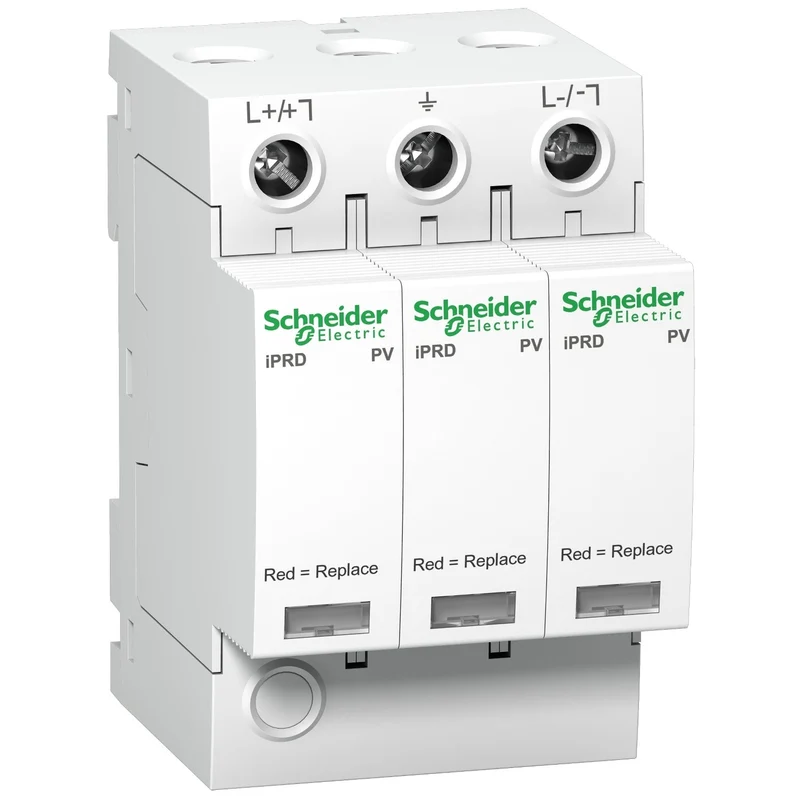

Schneider A9L40281 Acti9 iPRD PV-DC SPD 2P 1000VDC Remote Signal

The Schneider Electric A9L40281 is a withdrawable DC surge protection device (SPD) from the Acti 9 range, part of the iPRD PV-DC series. It provides overvoltage protection for DC photovoltaic installations and includes remote signalling for status monitoring.

• Reference: A9L40281
• Range: Acti 9
• Model: iPRD PV-DC
• Type: Withdrawable surge protection device (SPD)
• Poles: 2P
• Rated voltage (Ue): 1000 V ±10% DC
• Remote signalling: Included
• Application: DC photovoltaic (PV) systems
