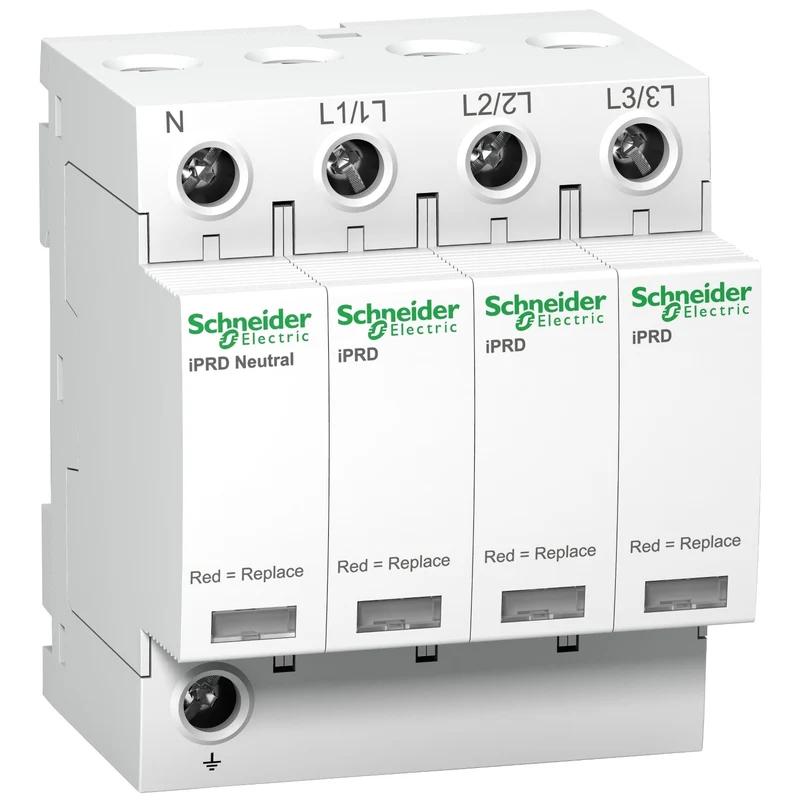

Schneider A9L40601 Acti9 iPRD40r SPD 3P+N 350V Remote Signal

The Schneider Electric A9L40601 is an Acti 9 iPRD40r withdrawable modular surge protection device (SPD) for 3P+N systems, protecting 230/400 V AC installations against transient overvoltages. The iPRD40r includes a remote signalling output for integration with building management or alarm systems.

• Reference: A9L40601
• Range: Acti 9
• Model: iPRD40r
• Type: Withdrawable surge protection device (SPD)
• Poles: 3P + N
• Voltage (product designation): 350 V
• Rated voltage (Ue): 230/400 V AC (±10%) at 50/60 Hz
• Remote signalling output: included
