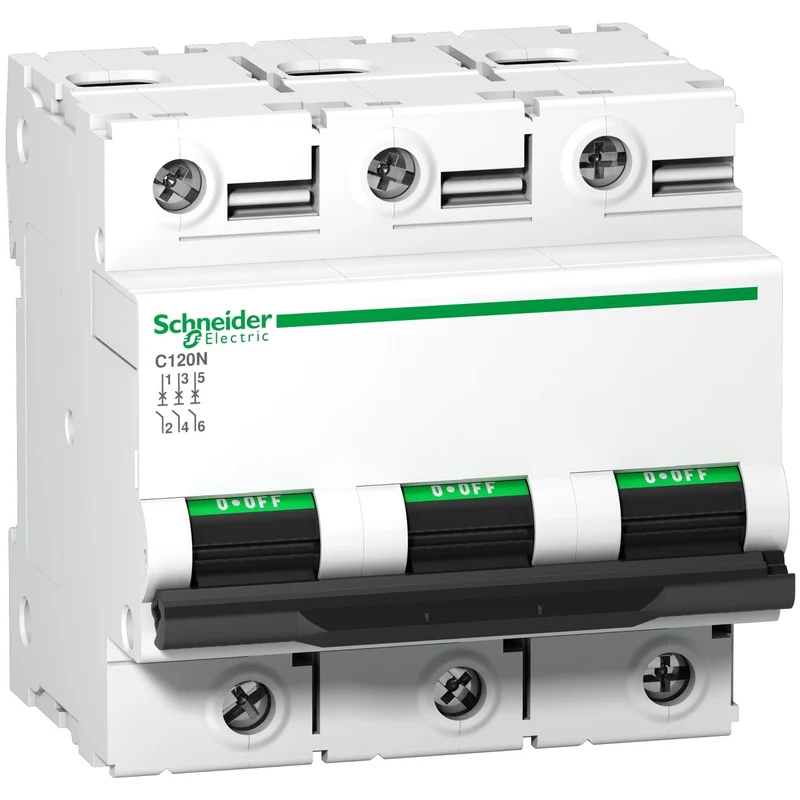

Schneider A9N18364 Acti9 C120N MCB 3P C 63A 10kA

The Schneider Electric A9N18364 is a 3-pole miniature circuit breaker (MCB) from the Acti 9 C120 range, intended for overcurrent protection in industrial and commercial distribution boards.

• Reference: A9N18364
• Range: Acti 9
• Model: C120N
• Type: Miniature circuit breaker (MCB)
• Poles: 3P
• Rated current (In): 63 A at 30 °C
• Tripping curve: C
• Breaking capacity (Icn): 10,000 A at 230–400 V AC 50/60 Hz
• Rated voltage (Ue): ≤ 375 V DC
• Standard: EN/IEC 60898-1
