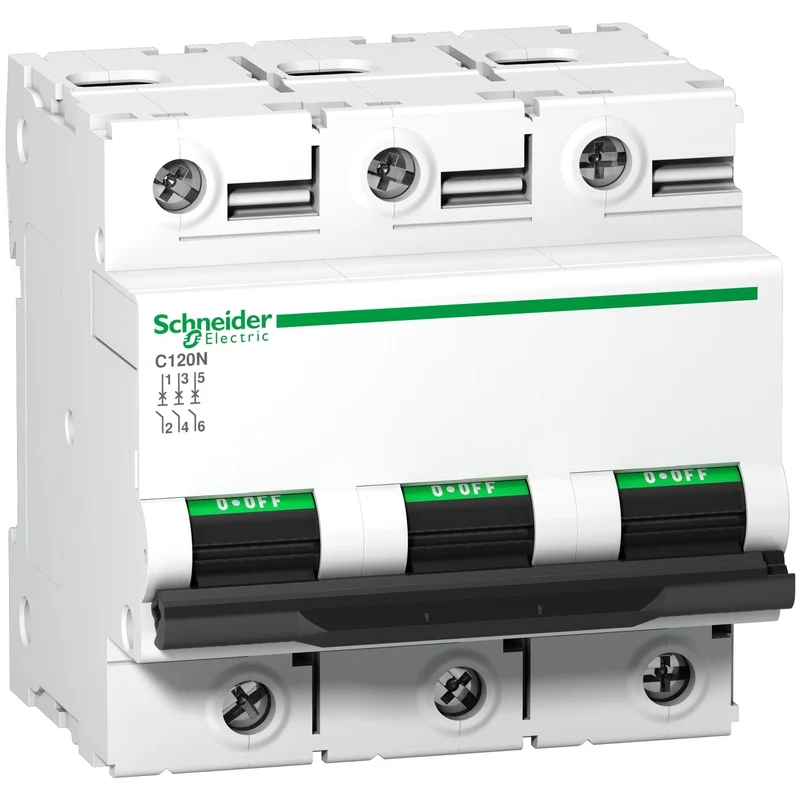

Schneider A9N18369 Acti9 C120N MCB 3P C 125A 10kA

The Schneider Electric Acti9 C120N (A9N18369) is a 3-pole miniature circuit breaker from the Acti9 range, designed for overcurrent protection in commercial and industrial low-voltage distribution boards.

• Reference: A9N18369
• Range: Acti9
• Model: C120N
• Type: Miniature circuit breaker (MCB)
• Poles: 3P
• Rated current (In): 125 A at 30 °C
• Tripping curve: C
• Breaking capacity (Icn): 10 kA at 230–400 V AC 50/60 Hz
• Rated voltage (Ue): ≤ 375 V DC
• Standard: EN/IEC 60898-1
