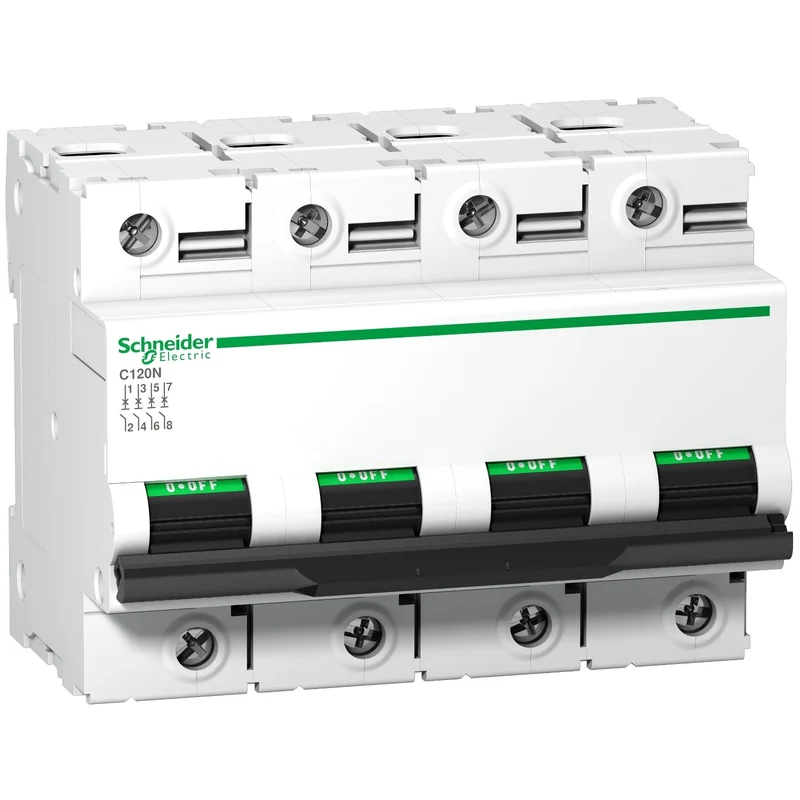

Schneider A9N18372 Acti9 C120N MCB 4P C 80A 10kA
Beschreibung
The Schneider Electric A9N18372 is an Acti9 C120N 4-pole miniature circuit breaker (MCB) providing overcurrent protection in distribution boards and industrial installations.
- Reference: A9N18372
- Range: Acti 9
- Model: C120N
- Type: Miniature circuit breaker (MCB)
- Poles: 4P
- Rated current (In): 80 A at 30 °C
- Tripping curve: C
- Breaking capacity (Icn): 10,000 A at 230–400 V AC 50/60 Hz
- Rated voltage (Ue): 380–415 V AC 50/60 Hz
- Standard: EN/IEC 60898-1
