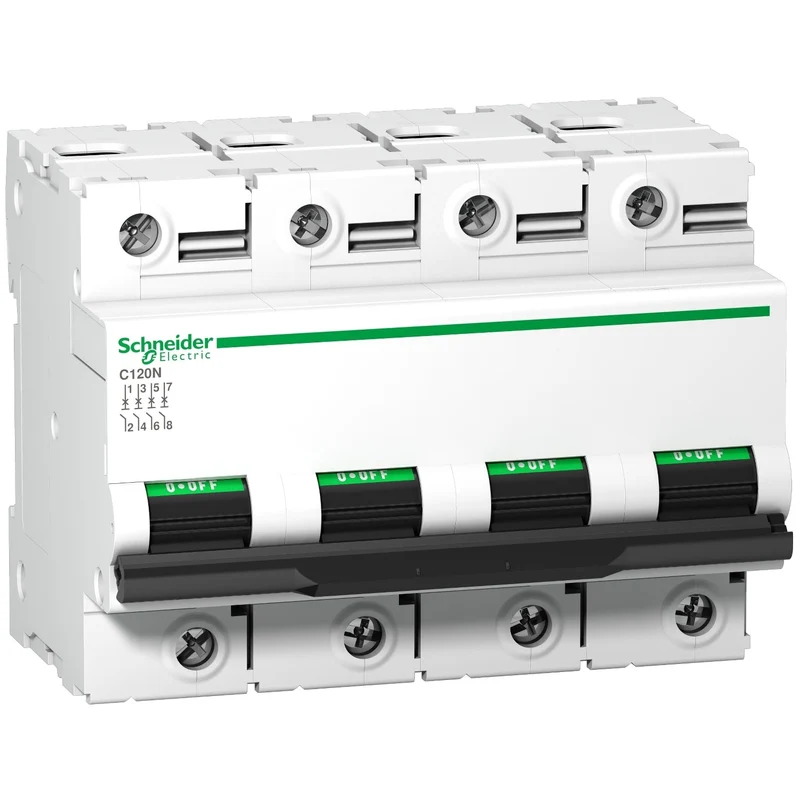

Schneider A9N18374 Acti9 C120N MCB 4P C 100A 10kA

The Schneider Electric A9N18374 is a C120N 4-pole miniature circuit breaker (MCB) from the Acti 9 range, designed for overcurrent and short-circuit protection of circuits in industrial and commercial distribution boards.

• Reference: A9N18374
• Range: Acti 9
• Model: C120N
• Type: Miniature circuit breaker (MCB)
• Poles: 4P
• Rated current (In): 100 A at 30 °C
• Tripping curve: C
• Breaking capacity (Icn): 10,000 A at 230–400 V AC 50/60 Hz
• Rated voltage (Ue): 380–415 V AC 50/60 Hz
• Standard: EN/IEC 60898-1
