Anbieter: SCHNEIDER ELECTRIC

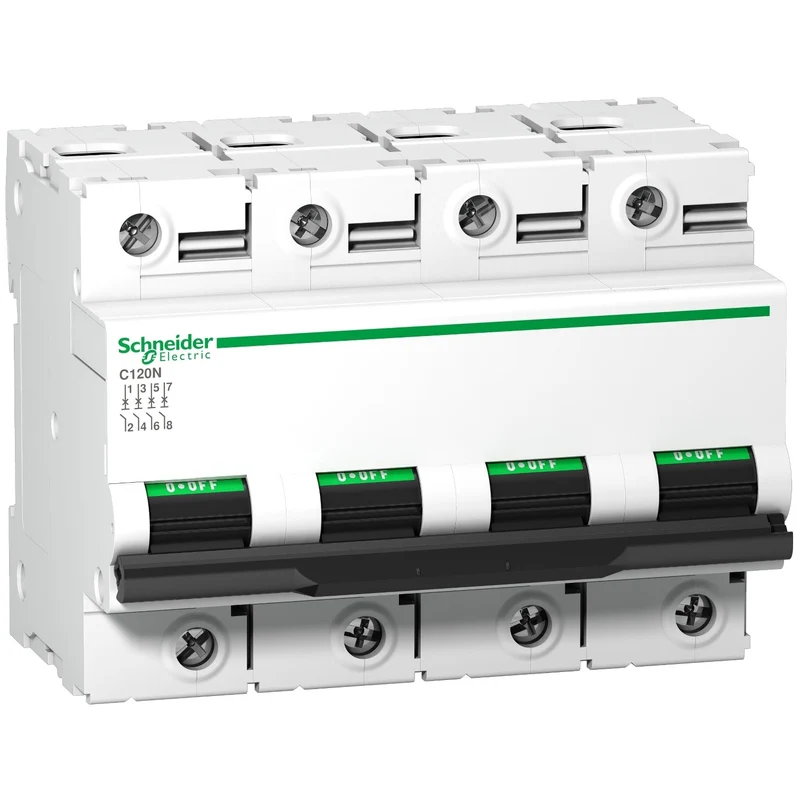

Schneider A9N18393 Acti9 C120N MCB 4P D 125A 10kA
Beschreibung
The Schneider Electric Acti9 C120N (A9N18393) is a 4-pole miniature circuit breaker from the Acti 9 range, designed for overcurrent protection in industrial and commercial electrical distribution installations.
- Reference: A9N18393
- Range: Acti 9
- Model: C120N
- Type: Miniature circuit breaker (MCB)
- Poles: 4P
- Rated current (In): 125 A at 30 °C
- Tripping curve: D
- Breaking capacity (Icn): 10,000 A at 230...400 V AC 50/60 Hz per EN/IEC 60898-1
- Rated voltage (Ue): 380...415 V AC 50/60 Hz
- Standard: EN/IEC 60898-1
