Anbieter: SCHNEIDER ELECTRIC

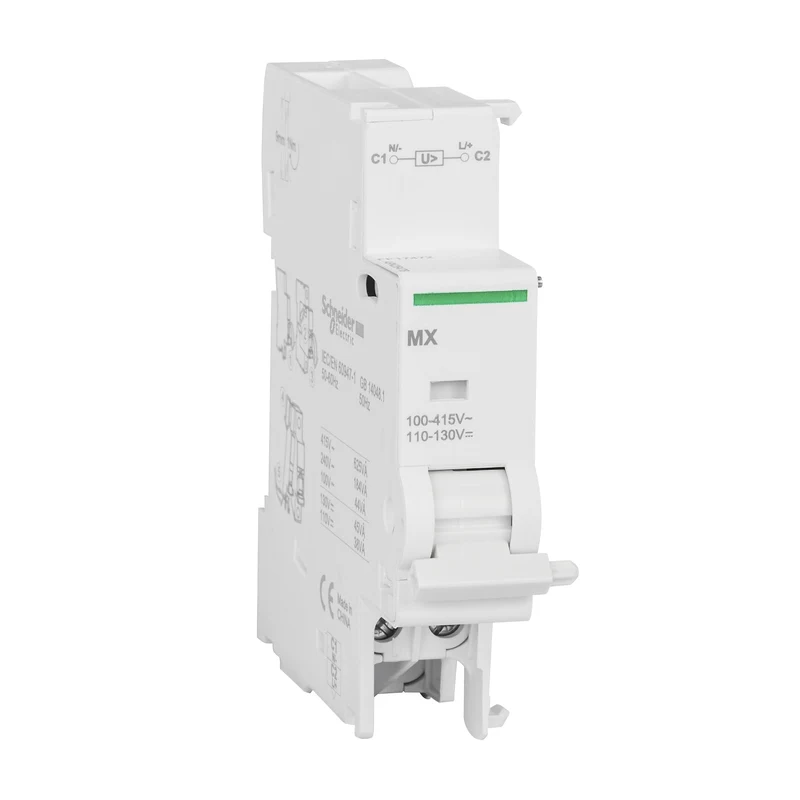

Schneider A9N26476 Acti9 MX Shunt Trip Release 415VAC 110-130VDC
Beschreibung
The Schneider Electric A9N26476 is an MX shunt trip release in the Acti9 range, rated at 415VAC and 110-130VDC for electrically tripping compatible Acti9 devices.
Technical specifications:
- Range: Acti9
- Product type: Shunt trip release
- Device name: MX
- Control voltage: 110...415 V AC 50/60 Hz
- Local signalling: Action indicator
- Colour: White
- Mounting: Fixed
- Mounting support: 35 mm symmetrical DIN rail
- Terminals: Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm - flexible
- Tightening torque: 1 N.m bottom
- Width: 18 mm
- Height: 82.5 mm
- Depth: 73.5 mm
- Weight: 60 g
- Standards: EN/IEC 60947-2
