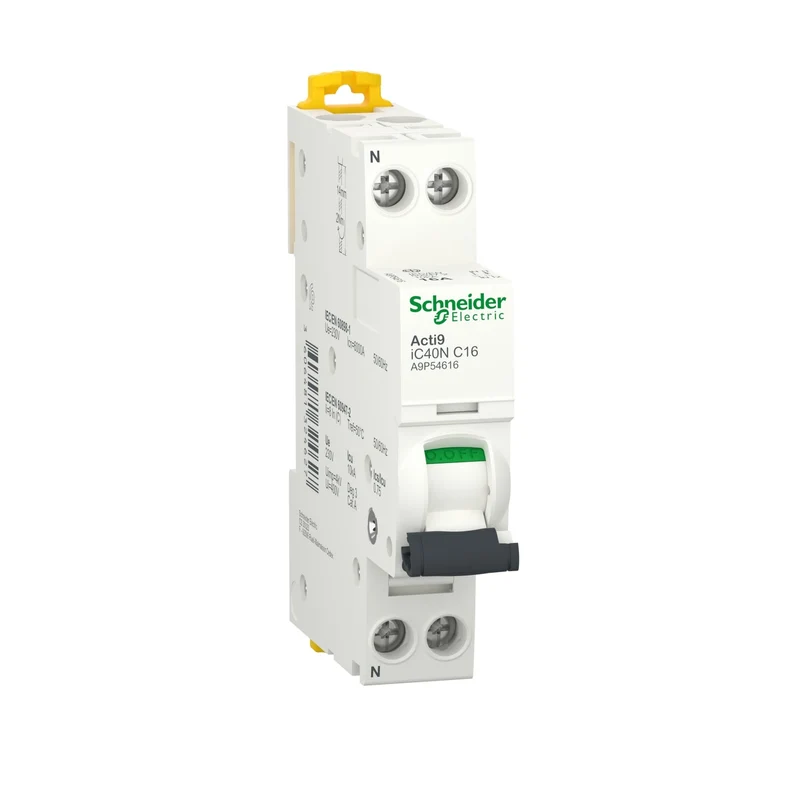

Schneider A9P54616 Acti9 iC40N MCB 1P+N 16A C Curve 6kA

The Schneider Electric A9P54616 is a 1P+N 16A C curve miniature circuit breaker (MCB) from the Acti9 iC40N range.

Technical specifications:

• Range: Acti9
• Product type: Miniature circuit-breaker
• Device name: iC40N
• Application: Distribution
• Trip unit technology: Thermal-magnetic
• Rated voltage: 230 V AC 50/60 Hz
• Insulation voltage: 400 V AC 50/60 Hz conforming to EN/IEC 60947-2
• Rated current: 16 A
• Poles description: 1P + N
• Network type: AC
• Network frequency: 50/60 Hz
• Local signalling: ON/OFF indication
• Colour: White
• Mounting: Clip-on
• Terminals: Tunnel type terminals top or bottom 1...10 mm flexible
• Tightening torque: 2 N.m top or bottom
• Width: 18 mm
• Height: 85 mm
• Depth: 74 mm
• Weight: 120 g
• Standards: EN/IEC 60898-1
• IP rating: IP20 conforming to IEC 60529
