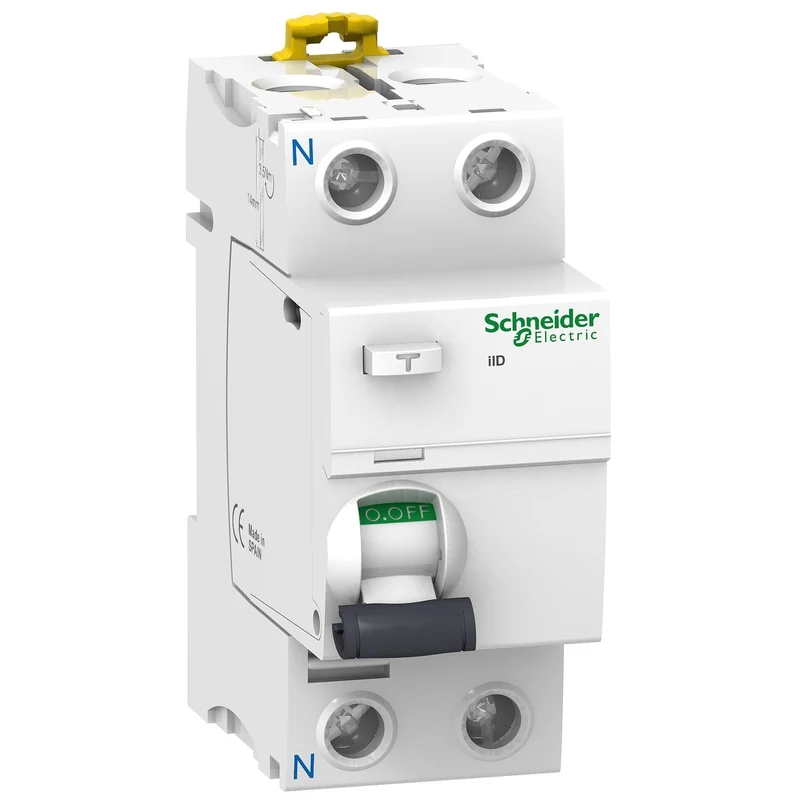

Schneider A9R41240 Acti9 iID RCCB 2P 40A 30mA AC Type

The Schneider Electric Acti9 iID (reference A9R41240) is a 2-pole residual current circuit breaker (RCCB) from the Acti9 range, providing earth-leakage protection in residential and commercial low-voltage installations. It offers no overcurrent protection and must be used in conjunction with a suitable overcurrent protective device.

• Reference: A9R41240
• Range: Acti9
• Model: iID
• Type: RCCB (residual current circuit breaker, no overcurrent protection)
• Poles: 2P
• Rated current In: 40 A
• Residual current sensitivity IΔn: 30 mA
• RCD type: AC
• Rated voltage Ue: 220...240 V AC 50/60 Hz
