Anbieter: SCHNEIDER ELECTRIC

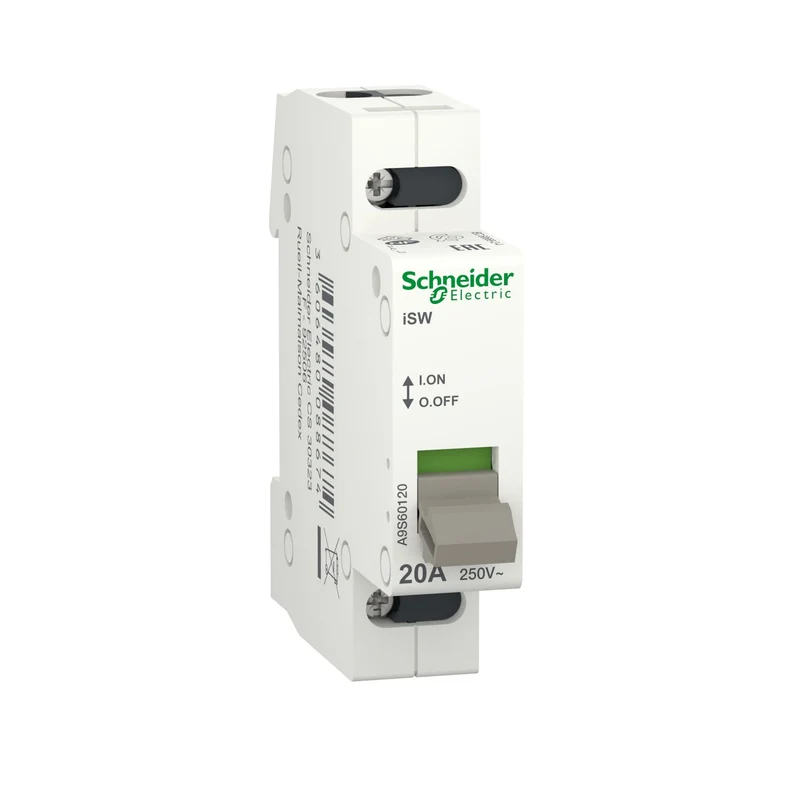

Schneider A9S60120 Acti9 iSW Switch-Disconnector 1P 20A 250V
Beschreibung
The Schneider Electric A9S60120 is a 1-pole iSW switch-disconnector from the Acti 9 range, designed for the safe isolation of electrical circuits at 250 V AC.
Technical specifications:
- Range: Acti9
- Product type: Switch disconnector
- Device name: iSW
- Application: Control
- Rated voltage: 250 V AC 50/60 Hz
- Insulation voltage: 250 V AC 50/60 Hz conforming to EN/IEC 60669-2-4
- Poles description: 1P
- Utilisation category: AC-22A
- Local signalling: ON/OFF indication
- Colour: Grey
- Mounting: Fixed
- Mounting support: DIN rail
- Terminals: Tunnel type terminals - 10 mm - rigid
- Tightening torque: 1.2 N.m
- Width: 18 mm
- Height: 77 mm
- Depth: 70 mm
- IP rating: IP4
