Schneider A9XPC612 Acti9 Comb Busbar 1L+N 9mm 12 Modules 80A

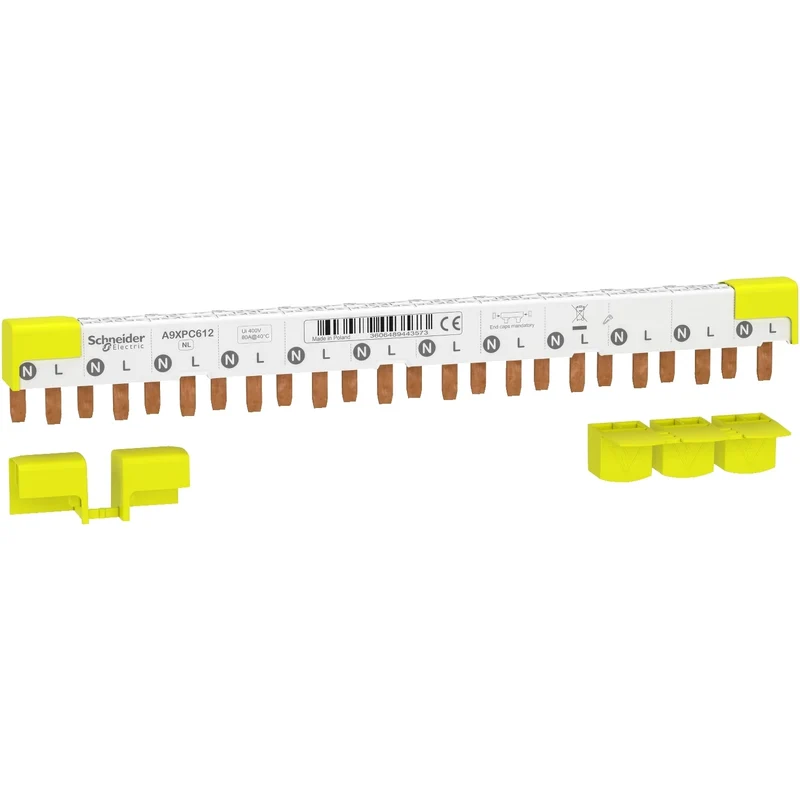

The Schneider Electric A9XPC612 is a comb busbar in the Acti9 range, used to link up to 12 modules in a 1L+N configuration at a 9 mm pitch, rated at 80 A. It supplies power to a group of circuit breakers and RCBOs across a horizontal DIN rail row, and is cuttable to length.

Technical specifications:

• Range: Acti9
• Product type: Comb busbar
• Lines description: 1L + N
• Number of ways: 12 ways N + 1 L
• Poles configuration for 1 way: 1 x 1P + N
• Length: 12 x 18 mm modules
• Connection pitch: 9 mm between phase and neutral
• Distance between ways: 18 mm
• Connector type: Tooth
• Rated operational current: 80 A at 40 °C
• Rated operational voltage: 230 V AC Ph/N
• Rated insulation voltage: 400 V AC conforming to IEC 61439-1
• Rated impulse withstand voltage: 4 kV
• Mounting: Horizontal, top on tunnel type terminals
• Provided equipment: End-pieces and tooth covers
• Device presentation: Cuttable, insulated
• IP rating: IP20 with end-pieces and tooth covers
• Fire resistance: 960 °C (30 s) conforming to IEC 60695-2-1
• Pollution degree: 3
• Dimensions: 218 mm W x 32 mm H x 27 mm D
• Weight: 93 g
• Colour: White (RAL 9003)
• Standards: EN/IEC 61439-1
• Country of origin: Poland

Compatible with Acti9 C40, C40 Vigi, iDPN, iDPN Vigi, IDc, iC40, iCV40, iID40 and Vigi iCG40, and with Multi9 N40 and N40 Vigi devices.
