Schneider ABLM1A24006 Regulated Power Supply

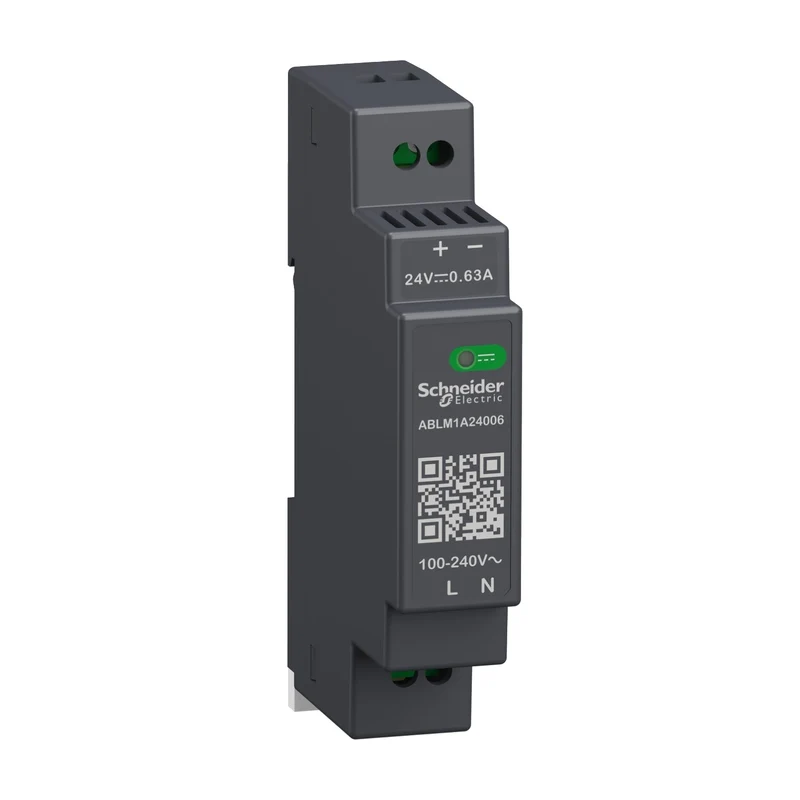

The Schneider Electric ABLM1A24006 is a single-phase modular regulated power supply from the Modicon Power Supply range, converting a universal 100-240 V AC input to a stable 24 V DC output at 0.625 A. At just 18 mm wide and 15 W rated power, it is designed for compact DIN rail installation in control panels and automation enclosures.

Technical specifications:

• Commercial reference: ABLM1A24006
• Manufacturer: Schneider Electric
• EAN: 3606481500120
• Series / range: Modicon Power Supply
• Product type: Regulated power supply
• Input voltage: 100...240 V AC single-phase (operating range: 90...264 V AC)
• Input frequency: 50...60 Hz
• Output voltage: 24 V DC
• Output current: 0.625 A
• Rated power: 15 W
• Efficiency: 81% at 115 V AC and 230 V AC
• Output ripple: less than 100 mV
• Line regulation: less than 0.5%; load regulation: less than 1% (0-100% load)
• Hold time: greater than 10 ms at 115 V AC, greater than 60 ms at 230 V AC
• MTBF: 3,000,000 hours at 25°C full load; 1,000,000 hours at 55°C 80% load
• Width x Height x Depth: 18 x 91 x 55.6 mm
• Weight: 0.101 kg
• IP protection: IP20
• Operating temperature: -25...55°C without derating; up to 70°C with 2.67% per °C derating
• Network system compatibility: TN, TT, IT
• Mounting: DIN rail TH35-7.5 and TH35-15 per IEC 60715, panel mounting
• Connection terminals: Screw terminal 0.5...1.5 mm² (AWG 20-16) without ferrule; 0.5...1 mm² (AWG 20-18) with ferrule
• Service life: 10 years
• Overvoltage category: II
• Certifications: CE, CUL listed, CUL recognized, RCM, CB Scheme, EAC, KC, NEC Class 2

Features and benefits:

• Universal input range (90...264 V AC) compatible with TN, TT, and IT network systems worldwide
• Integrated non-replaceable 3.15 A input fuse provides built-in upstream protection
• Triple output protection: auto-reset overload and short-circuit, manual-reset overtemperature and overvoltage
• SELV output compliant with IEC 60950-1, IEC 60204-1, and IEC 60364-4-41 for safe extra-low-voltage circuits
• Green LED indicator for continuous output voltage status monitoring
• Compact single-module (18 mm) footprint with 10-year rated service life

Applications:

• 24 V DC power supply for PLCs, sensors, and actuators in industrial automation panels
• Control cabinet power source for machine safety and signalling circuits
• Building automation and HVAC control system power supply
• SELV supply for instrumentation in metering and process control enclosures
• Modular distribution boards requiring a slim DIN rail power module

Compliant with IEC 62368-1, EN/IEC 61010-1, EN/IEC 61204-3, and IEC 61000 series EMC standards. Part of the Schneider Electric Modicon Power Supply range.
