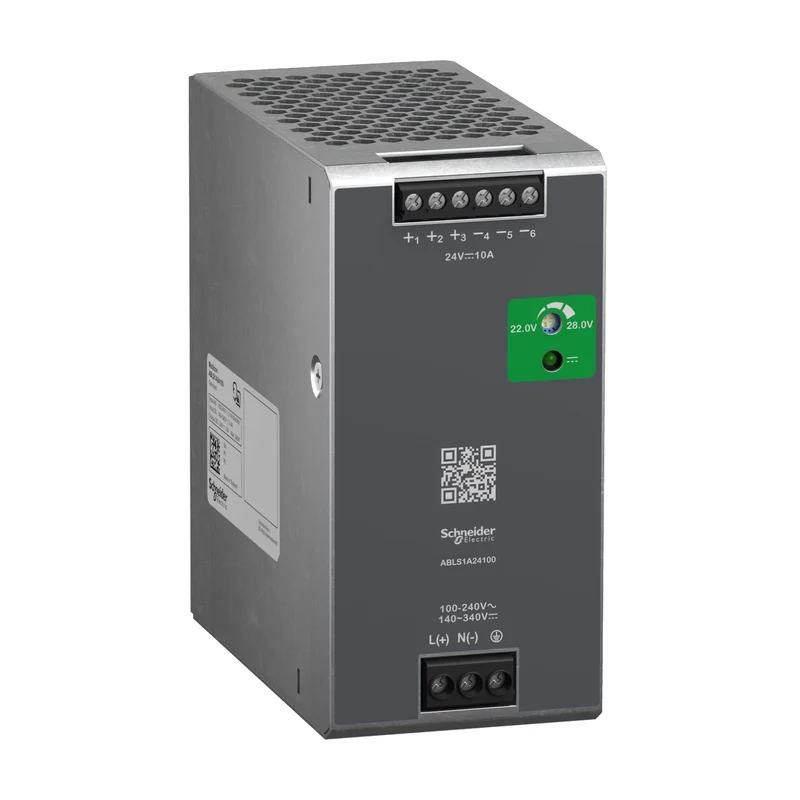

Schneider ABLS1A24100 Regulated Power Supply

The Schneider Electric ABLS1A24100 is a regulated, single-phase DIN rail power supply from the Modicon Power Supply range, delivering a stable 24 V DC output at 10 A (240 W). Its wide-range input of 100-240 V AC or 140-340 V DC makes it suitable for global installations across industrial automation and control panel environments.

Technical specifications:

• Commercial reference: ABLS1A24100
• Manufacturer: Schneider Electric
• EAN: 3606481500250
• Series / range: Modicon Power Supply
• Supply type: Regulated, optimized
• Housing material: Aluminum
• Nominal input voltage: 100-240 V AC (single-phase), 140-340 V DC
• Input voltage range (without derating): 85-264 V AC / 120-375 V DC
• Nominal network frequency: 50-60 Hz
• Network system compatibility: TN, TT, IT
• Rated output voltage: 24 V DC (adjustable 22-28 V)
• Rated output current: 10 A
• Rated output power: 240 W
• Efficiency: 85% at 115 V AC / 88% at 230 V AC
• Power dissipation: 36 W
• Residual ripple: <120 mV
• Hold-up time: >20 ms
• Start-up time: <1 s
• MTBF: 700,000 hours at 25°C full load (SR 332)
• Input protection: Integrated non-replaceable fuse 6.3 A
• Output protection: Overload and short circuit (auto reset), overtemperature and overvoltage (manual reset)
• Dielectric strength: 3000 V AC input to output isolation
• SELV: per IEC 60950-1, IEC 60204-1, IEC 60364-4-41
• Connection - input: Screw terminal 0.75-4 mm² (AWG 18-12)
• Connection - output: Screw terminal 0.5-4 mm² (AWG 20-12)
• Output connection: Parallel or series
• Status indicator: 1 green LED (output voltage)
• Dimensions (W x H x D): 60 x 123.6 x 117.6 mm
• Weight: 0.8 kg
• IP rating: IP20
• Operating temperature: -20...50°C without derating (230 V AC, mounting position A, <2000 m)
• Shock resistance: 150 m/s² for 11 ms
• Overvoltage category: II
• Pollution degree: 2
• Service life: 10 years
• Mounting: DIN rail TH35-7.5 / TH35-15 per IEC 60715, dual-profile DIN rail
• Certifications: CE, CUL listed, CUL recognized, RCM, CB Scheme, EAC, KC

Features and benefits:

• Wide-range AC/DC input (85-264 V AC, 120-375 V DC) enables worldwide deployment without reconfiguration
• Adjustable output voltage (22-28 V) allows precise tuning to match load requirements
• Triple output protection - overload/short circuit, overvoltage, overtemperature - with auto or manual reset options
• High efficiency (up to 88%) and low dissipation (36 W) reduce thermal load inside control enclosures
• 3000 V AC SELV isolation between input and output for safe low-voltage circuit separation
• Parallel or series output connection supports higher current or stepped voltage configurations

Applications:

• Industrial automation panels and PLC systems requiring stable 24 V DC supply
• Machine control cabinets and manufacturing equipment
• Building automation and HVAC control systems
• Process control and instrumentation installations

Compliant with IEC 62368-1, EN/IEC 61204-3, UL 508, UL 62368-1, CSA C22.2 No 107.1, and the IEC 61000 EMC series. Part of the Schneider Electric Modicon Power Supply range.

Also known as: Schneider ABLS1A24100, Schneider Electric ABLS1A24100, 24V 10A regulated DIN rail power supply, 240W industrial DC power supply.
