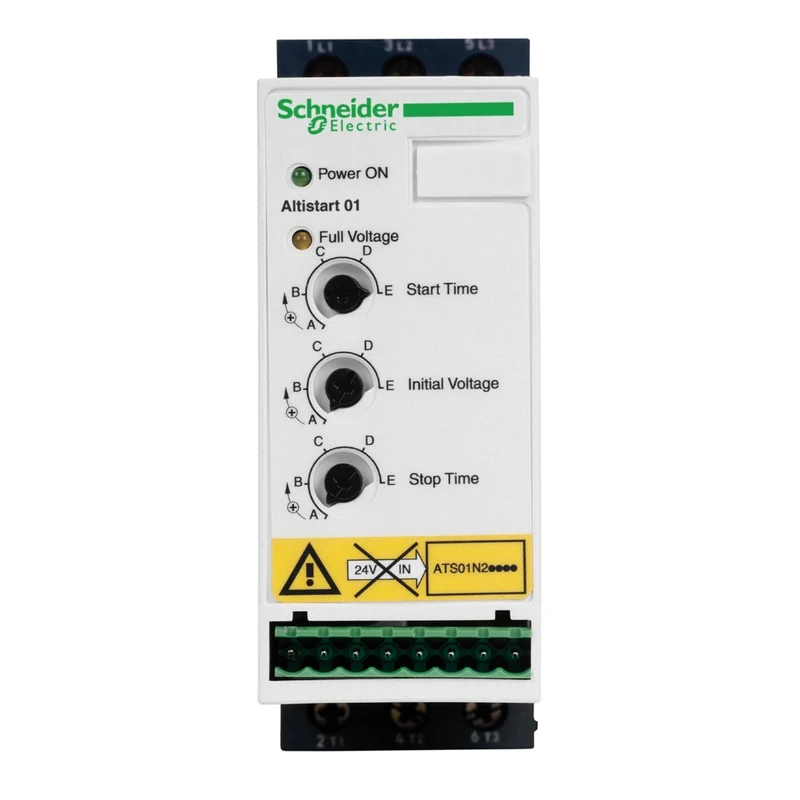

Schneider ATS01N206QN Altistart 01 Soft Starter 6A 380-415V 3kW DIN Rail

The ATS01N206QN is a Schneider Electric Altistart 01 soft starter for three-phase asynchronous motors, rated at 6 A with a supply voltage of 380 to 415 V. Suited for simple machine applications, it provides voltage ramp starting for motors from 1.5 to 3 kW and features an integrated bypass relay that reduces power dissipation once the motor reaches full speed.

Technical specifications:

• Commercial reference: ATS01N206QN
• Manufacturer: Schneider Electric
• EAN: 3389110667202
• Series / range: Altistart 01
• Rated current (Icl): 6 A
• Supply voltage: 380...415 V (-10%/+10%)
• Motor power: 1.5 / 2.2 / 3 kW (three-phase, 380...415 V)
• Usage category: AC-53B per EN/IEC 60947-4-2
• Starting type: Voltage ramp
• Start / stop time: Adjustable 1 to 10 s
• Starting torque: 30 to 80% of direct-on-line torque
• Supply frequency: 50...60 Hz
• Digital input voltage: 24...40 V
• IP protection: IP20
• Operating temperature: -10...40°C (full rating); 40...50°C with 2% per °C current derating
• Storage temperature: -25...70°C
• Mounting position: Vertical +/- 10 degrees
• Dimensions (WxHxD): 45 x 124 x 131 mm
• Weight: 0.42 kg
• Standards: EN/IEC 60947-4-2
• Certifications: UL, CSA, GOST, C-Tick, CCC

Features and benefits:

• Integrated bypass relay reduces in-panel heat dissipation to 4 W at full load after motor run-up
• Start and stop ramp times adjustable from 1 to 10 s for smooth acceleration and deceleration
• Starting torque adjustable from 30 to 80% of direct-on-line torque for optimised soft starting
• Two LED status indicators: green for device active, yellow for rated voltage reached
• EMC Class B compliant per CISPR 11 and IEC 60947-4-2 for residential and industrial environments

Applications:

• Soft starting of three-phase asynchronous motors on simple machines
• Pump and fan drives requiring smooth, current-limited ramp-up
• Conveyor systems where mechanical shock at start-up must be minimised
• Small compressors and industrial machinery in automation control panels

Compliant with EN/IEC 60947-4-2. Part of the Schneider Electric Altistart 01 range.

Also known as: Schneider ATS01N206QN, Schneider Electric ATS01N206QN, Altistart 01 soft starter, ATS01 motor soft starter.
